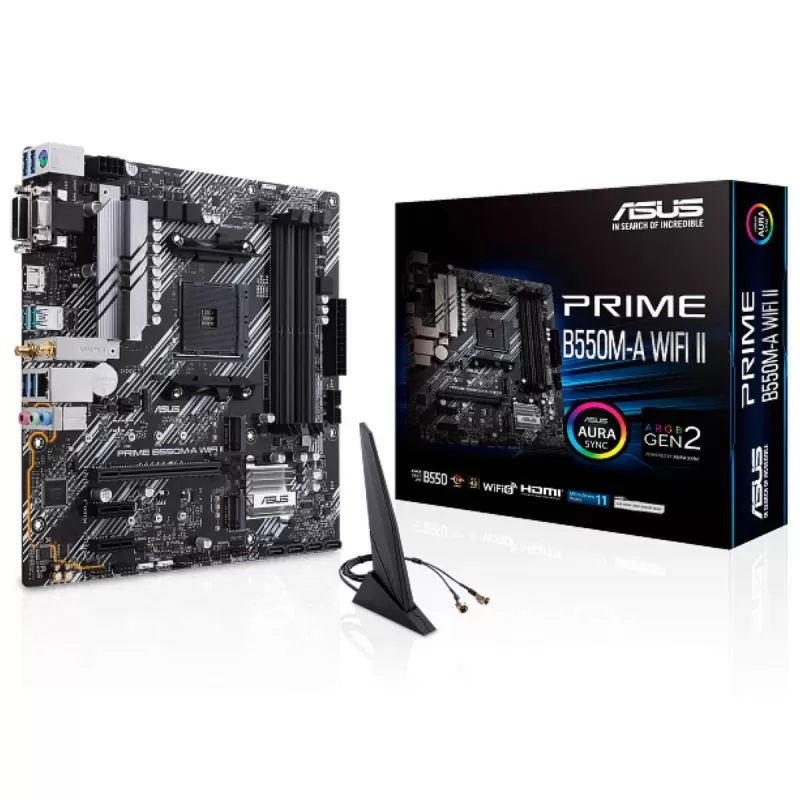

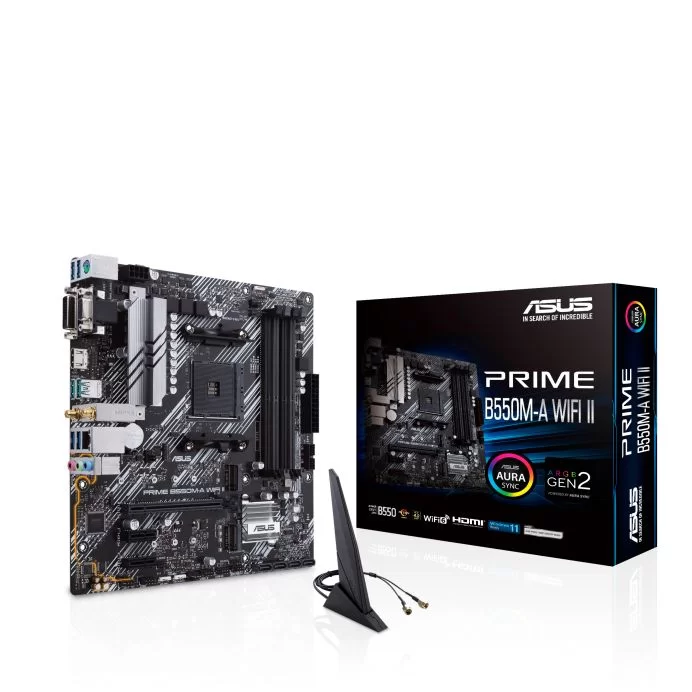

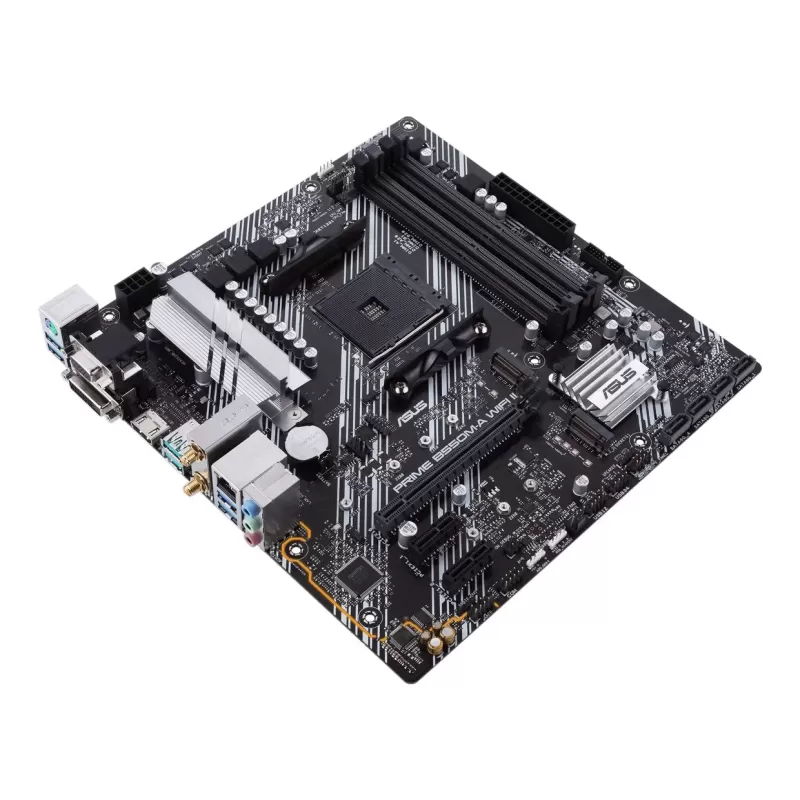

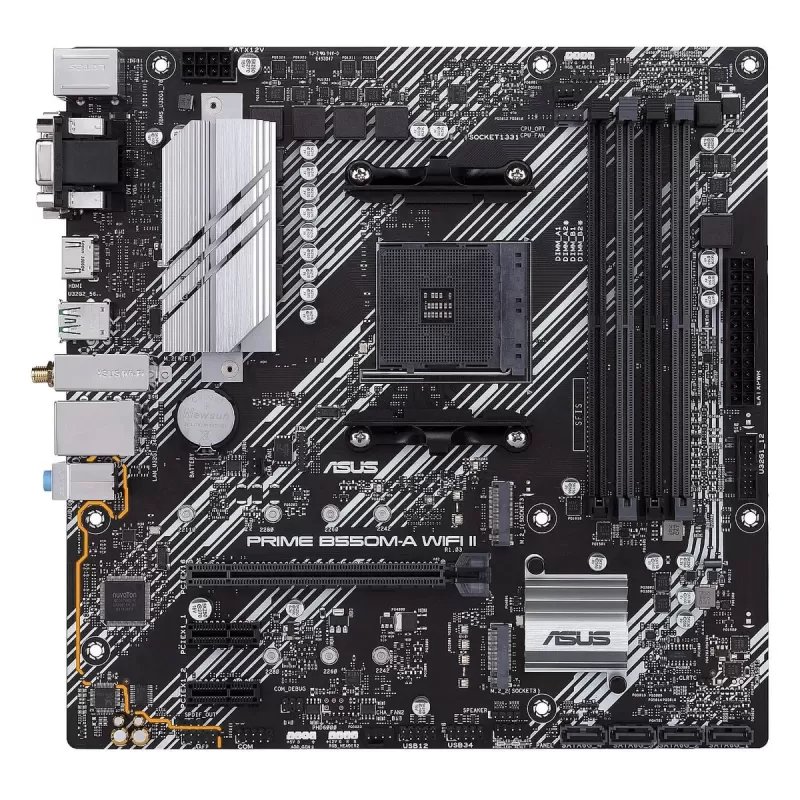

| Revew | Asus PRIME B550M-A WIFI II MotherboardThe Asus PRIME B550M-A WIFI II is an mATX motherboard for socket AM4 based on the AMD B550 chipset. It supports AMD Ryzen 5000, 5000 G, 4000 G and 3000 series processors and suits a home, office or gaming build in a compact case. The board has four DDR4 slots for up to 128GB of memory, a PCIe 4.0 x16 slot for a graphics card, two M.2 slots for NVMe drives and four SATA ports. For networking it offers a Realtek 1Gb Ethernet controller and built-in Wi-Fi 6 with Bluetooth 5.2, and the rear panel carries six USB ports, two of them USB 3.2 Gen 2.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | PRIME B550M-A WIFI II, 90MB19X0-M0EAY0 | ||||||||||||||||||||||||||||||||||||||||
| Model | PRIME B550M-A WIFI II | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4711081309741 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - LED-illuminated audio trace path design - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | ||||||||||||||||||||||||||||||||||||||||

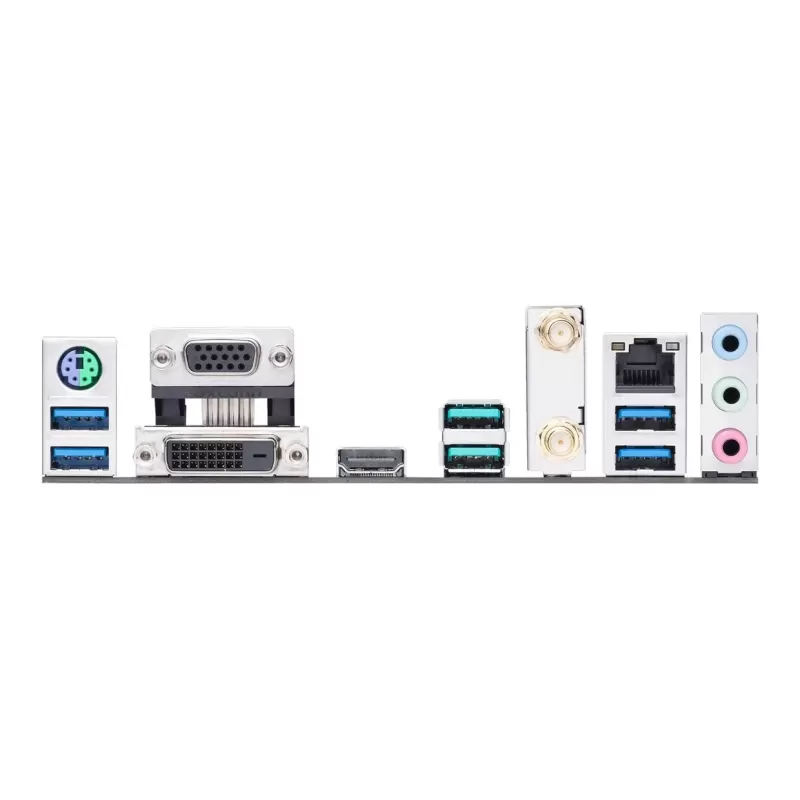

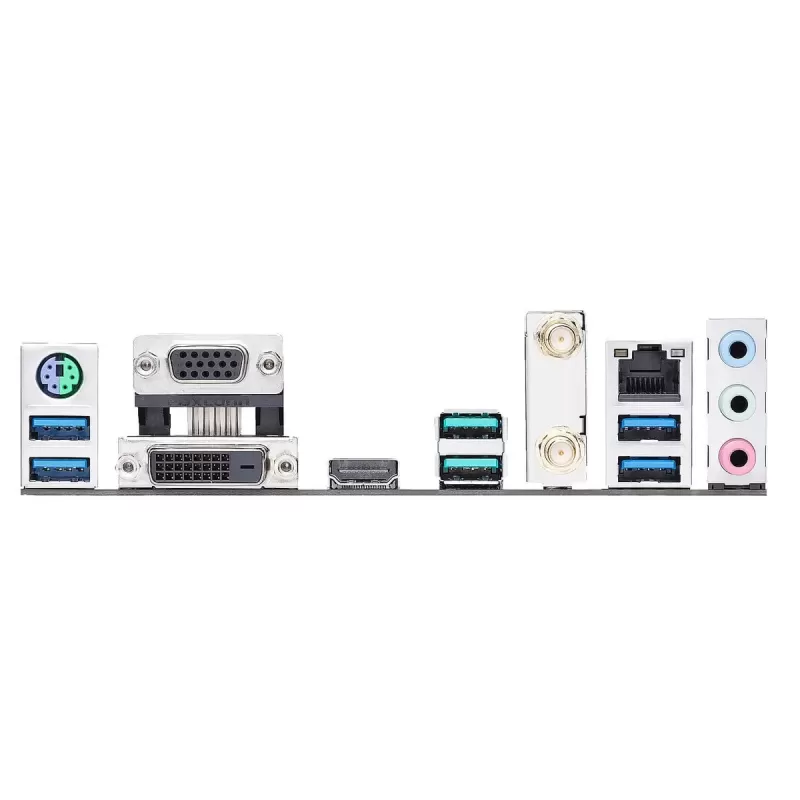

| Back Panel Connectors | 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI®&port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B550 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header | ||||||||||||||||||||||||||||||||||||||||
| Memory | 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory* Dual Channel Memory Architecture | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR4 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 128GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM4 | ||||||||||||||||||||||||||||||||||||||||
| Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | 1 x Realtek 1Gb Ethernet ASUS LANGuard | ||||||||||||||||||||||||||||||||||||||||
| Wireless network | 2x2&Wi-Fi&6&(802.11&a/b/g/n/ac/ax)&+&BT5.2 Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 | ||||||||||||||||||||||||||||||||||||||||

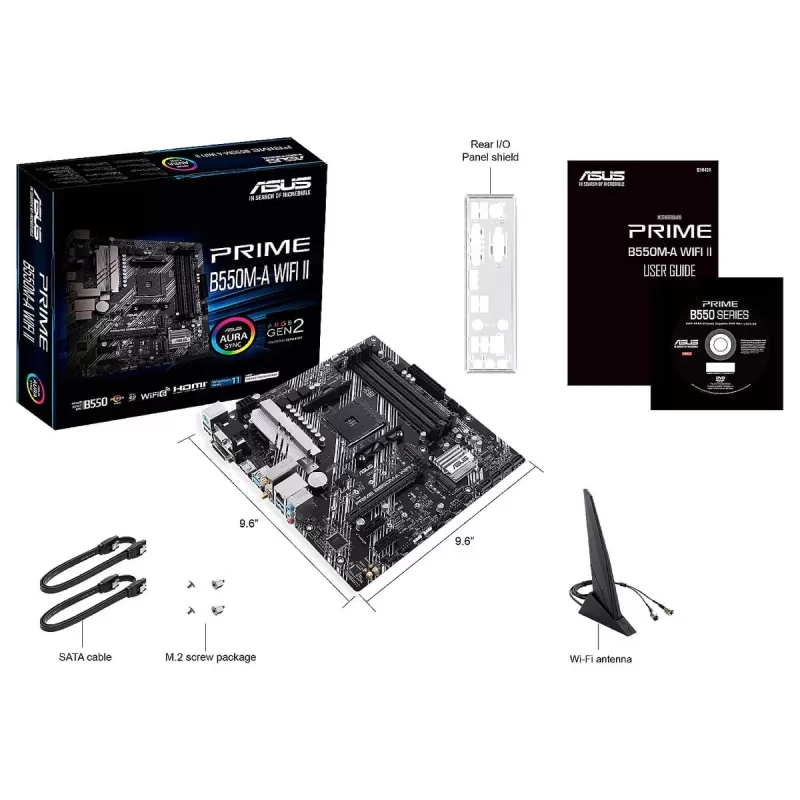

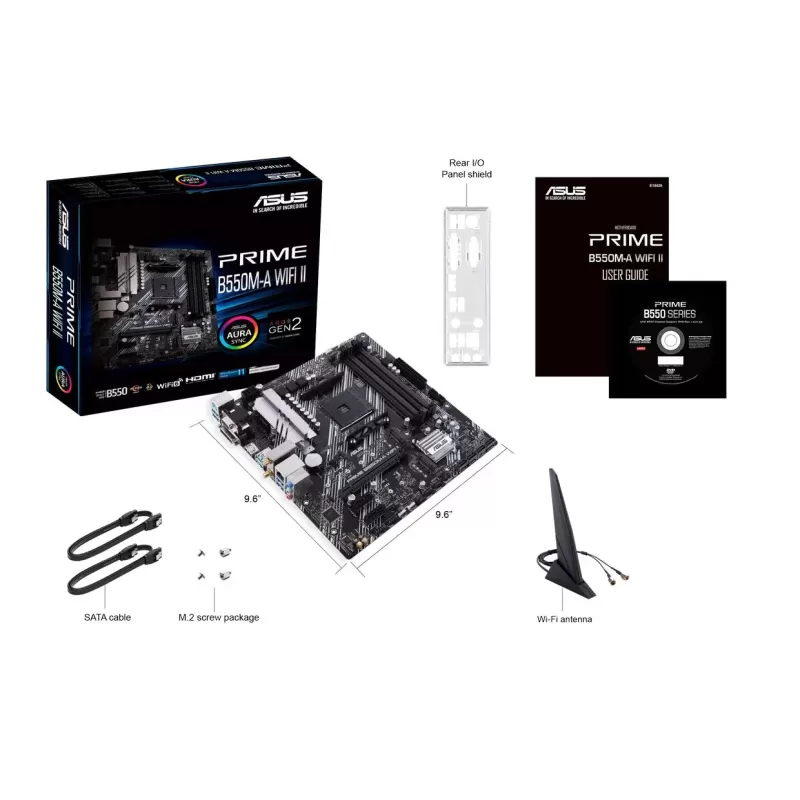

| What'S In The Box? | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual | ||||||||||||||||||||||||||||||||||||||||
