In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||||||

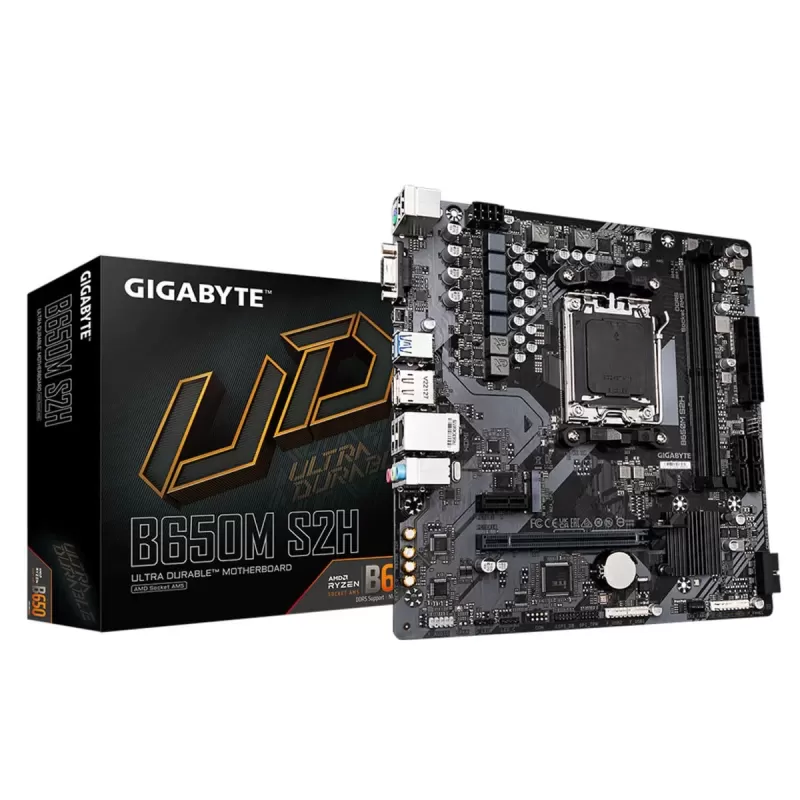

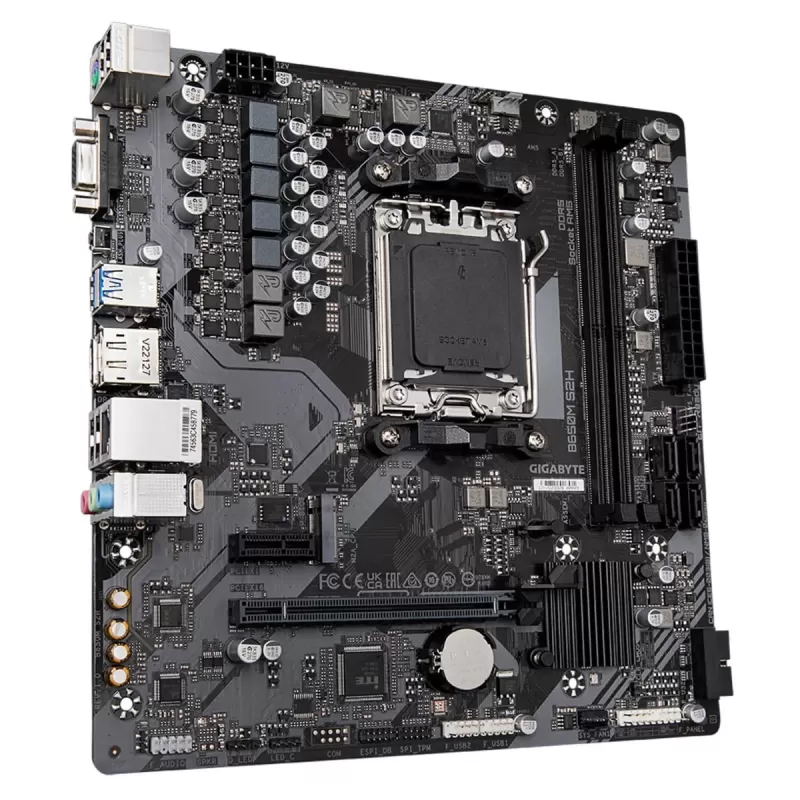

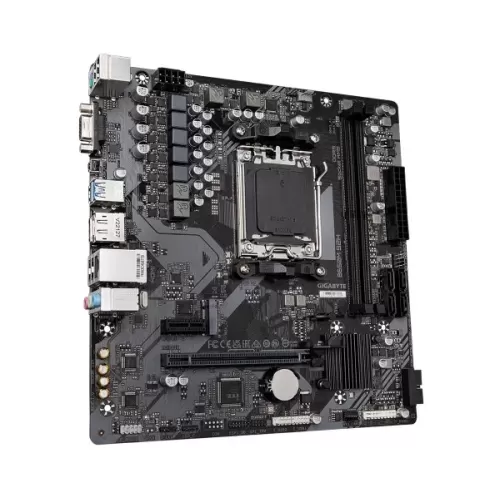

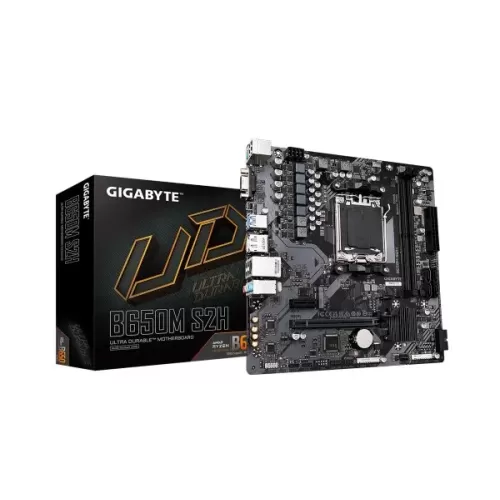

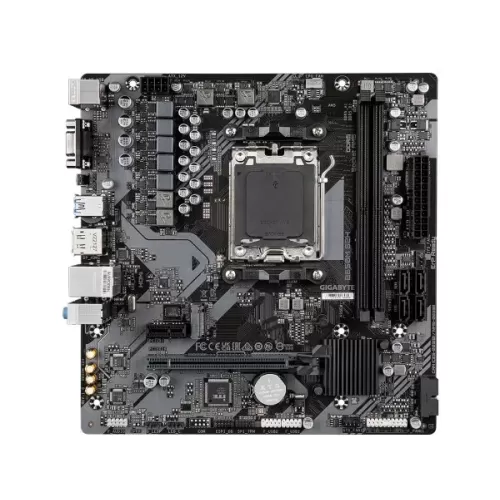

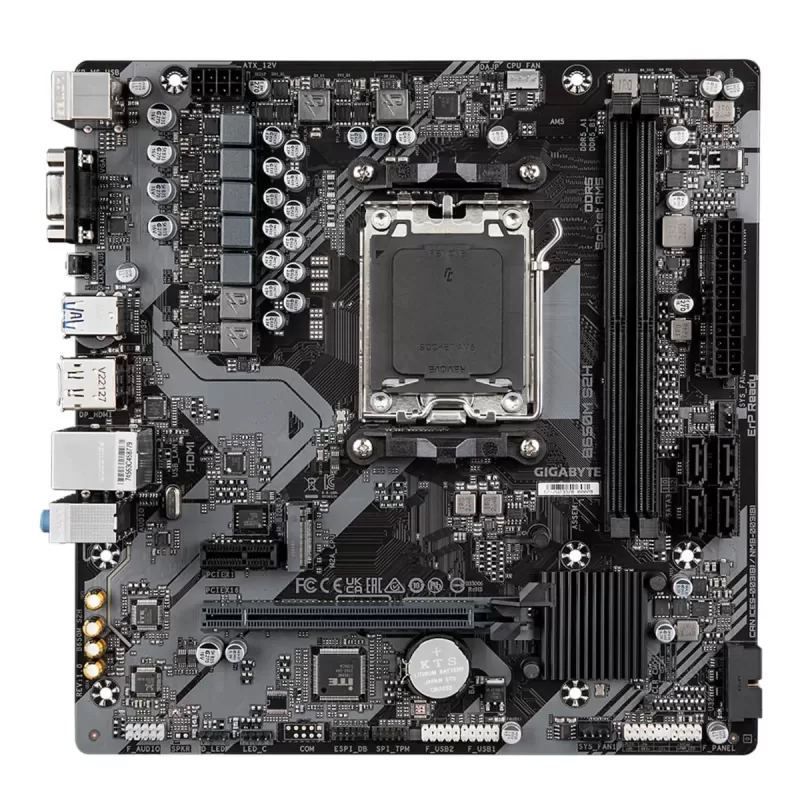

| Revew | Gigabyte B650M S2H MotherboardThe Gigabyte B650M S2H is an Ultra Durable series Micro ATX motherboard built on the AMD B650 chipset for AMD Ryzen 7000, 8000 and 9000 processors in the AM5 socket. At just 23.0 x 22.5 cm it is well suited to small cases and to home and office PCs on the AM5 platform. The board has a 5+2+2 phase digital VRM, two DDR5 slots for up to 128GB with AMD EXPO and XMP support, a PCIe 4.0 x16 slot with EZ-Latch and a PCIe 4.0 x4 M.2 slot. Integrated graphics get D-Sub, HDMI and DisplayPort outputs for up to three displays, plus Realtek Gigabit LAN and a rear Q-Flash Plus button.
Key features
Specifications
| ||||||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | B650M S2H | ||||||||||||||||||||||||||||||||||||||||
| Model | B650M S2H | ||||||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4719331856298 | ||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Gigabyte | ||||||||||||||||||||||||||||||||||||||||
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | ||||||||||||||||||||||||||||||||||||||||
| Back Panel Connectors | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 3 x audio jacks | ||||||||||||||||||||||||||||||||||||||||
| Chipset | B650 | ||||||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||||||
| importer | official | ||||||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper | ||||||||||||||||||||||||||||||||||||||||
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | ||||||||||||||||||||||||||||||||||||||||
| Memory Type | DDR5 DIMM | ||||||||||||||||||||||||||||||||||||||||
| Memory Volume | 96GB | ||||||||||||||||||||||||||||||||||||||||
| Socket | AM5 | ||||||||||||||||||||||||||||||||||||||||
| Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices | ||||||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | ||||||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Gigabyte B650M S2H DDR5 DIMM AM5 | ||||||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~58329~, NEW, OC: 36783, ML: 95B65014, ML2: 95B65012, ML3: 95B65011, CD: GB650MS2H, MPN: B650M S2H, EAN: 4719331856298 | ||||||||||||||||||||||||||||||||||||||||
