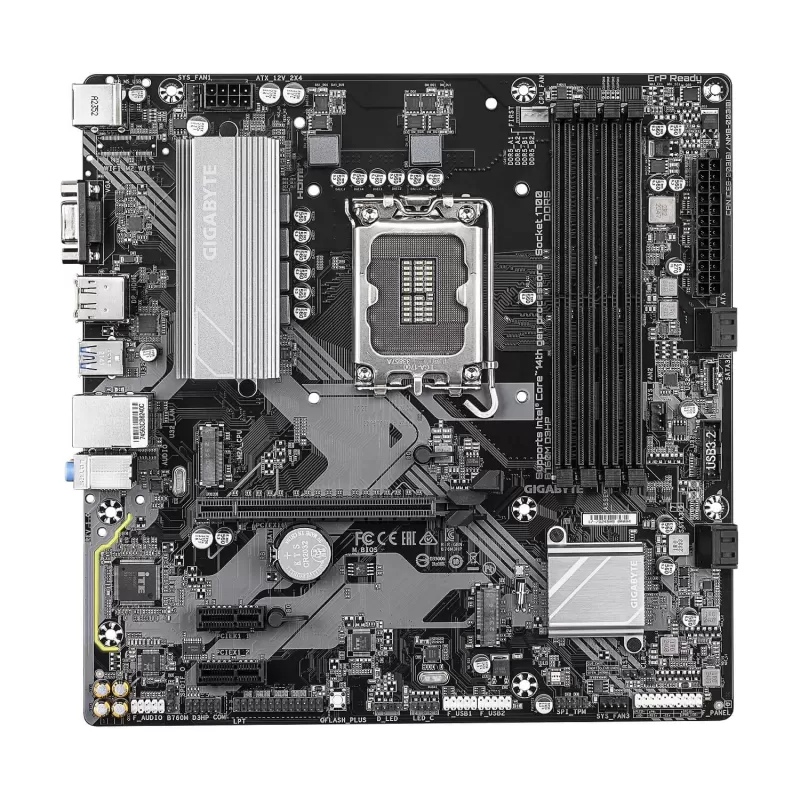

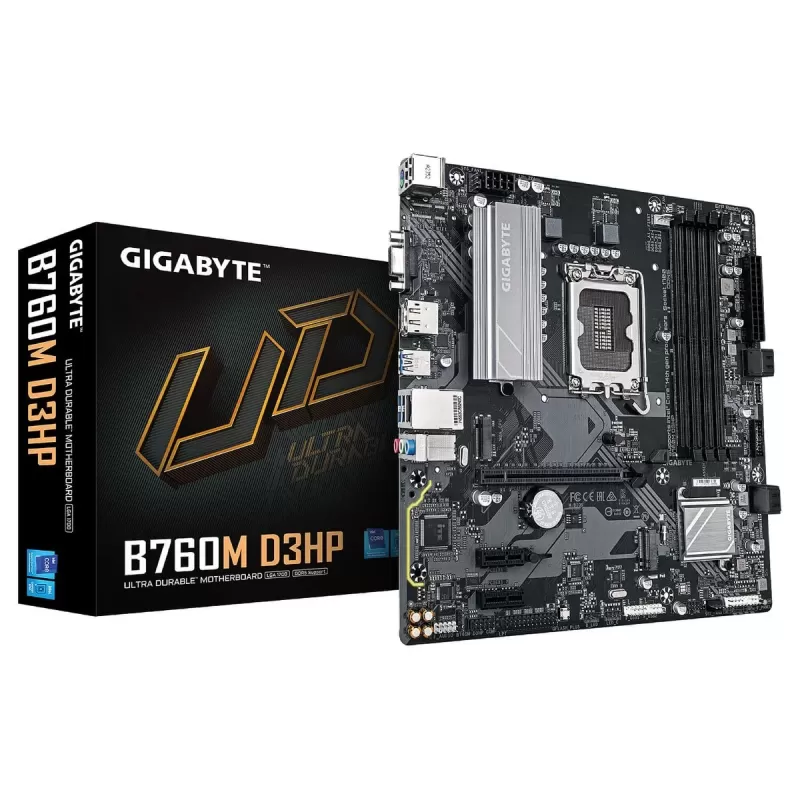

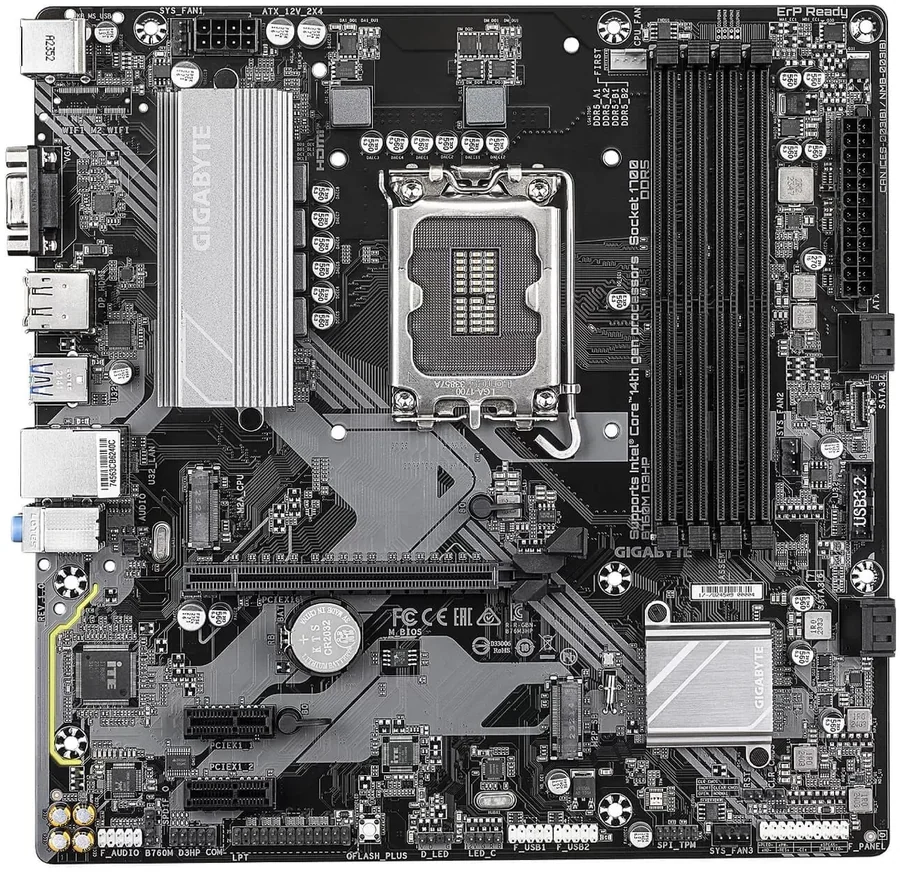

| Revew | Gigabyte B760M D3HP MotherboardThe Gigabyte B760M D3HP is an Ultra Durable series Micro ATX motherboard built on the Intel B760 chipset for 12th, 13th and 14th Gen Intel Core processors in the LGA1700 socket. It uses DDR5 memory and suits compact home and office PCs as well as entry-level gaming builds. The board has a 4+1+1 phase hybrid digital VRM, four DDR5 slots for up to 256GB, a PCIe 4.0 x16 slot with EZ-Latch and two PCIe 4.0 M.2 slots. Integrated graphics get three outputs, D-Sub, HDMI and DisplayPort, and there is also an internal front-panel USB-C header, Gigabit LAN and a Q-Flash Plus button.
Key features- 4+1+1 phase power - A hybrid digital VRM with low RDS(on) MOSFETs, premium chokes and capacitors, plus a solid-pin 8-pin CPU power connector.
- Dual-channel DDR5 - Four DIMM slots take up to 256GB of DDR5 with XMP support. Memory runs at up to 5600MT/s with 13th and 14th Gen Core i9/i7 processors and up to 4800MT/s with the other supported CPUs.
- Two PCIe 4.0 M.2 slots - Two PCIe 4.0 x4 M.2 slots for NVMe drives and four SATA 6Gb/s ports with RAID 0, 1, 5 and 10. The PCIe 4.0 x16 graphics slot has the EZ-Latch quick release.

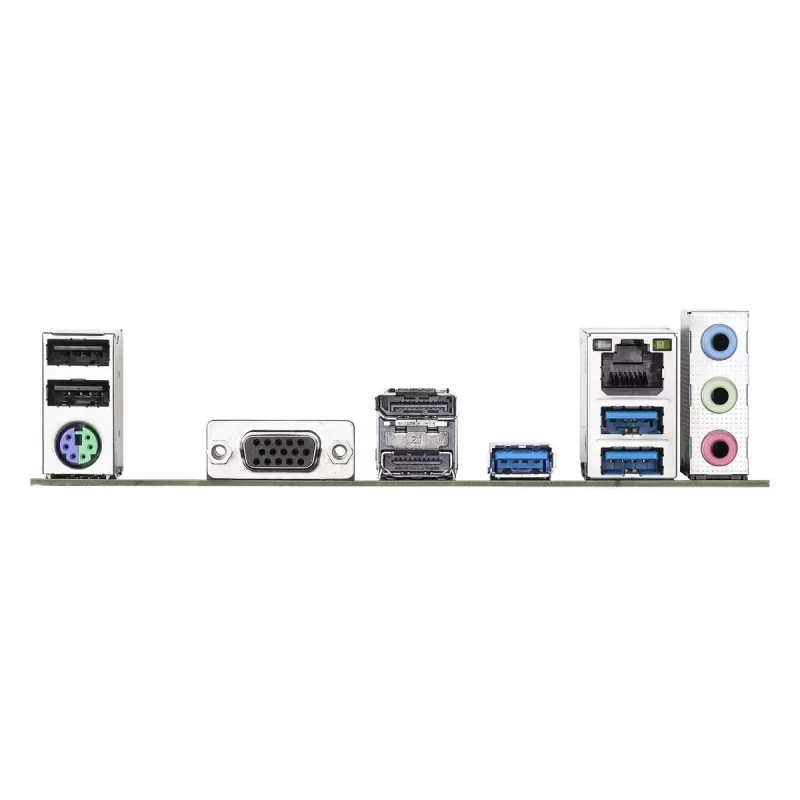

- Three video outputs - D-Sub, HDMI 2.1 and DisplayPort outputs drive up to three displays from the CPU's integrated graphics, including older VGA monitors.
- Connectivity for home and office - A 5Gb/s internal USB-C header for the front panel, five rear USB ports, Realtek Gigabit LAN and internal serial and parallel port headers for legacy devices.
- Smart Fan 6 and Q-Flash Plus - Four fan headers with curves based on several temperature sensors and FAN STOP. The Q-Flash Plus button updates the BIOS without a CPU, memory or graphics card.
Specifications| Manufacturer | Gigabyte | | Model | B760M D3HP | | CPU socket | LGA1700, 12th, 13th and 14th Gen Intel Core, Pentium Gold, Celeron | | Chipset | Intel B760 | | Memory | 4 x DDR5 DIMM, dual channel, up to 256GB (64GB per DIMM) | | Memory speed | Up to 5600MT/s (13th/14th Gen Core i9/i7), up to 4800MT/s (other CPUs), XMP | | VRM | 4+1+1 phases, hybrid digital VRM | | Expansion slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 | | M.2 slots | 2 x PCIe 4.0 x4/x2 (2280) | | SATA | 4 x SATA 6Gb/s, RAID 0/1/5/10 | | LAN | Realtek GbE (1Gbps) | | Video outputs | D-Sub (up to 1920x1200@60Hz), HDMI 2.1 (up to 4096x2160@60Hz), DisplayPort 1.2 (up to 4096x2304@60Hz), up to 3 displays | | Rear USB | 3 x USB 3.2 Gen 1, 2 x USB 2.0 | | Internal USB | 1 x USB-C 5Gb/s header, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) | | Audio | Realtek HD Audio, 7.1 channel, S/PDIF Out header | | Lighting | 1 x ARGB header, 1 x RGB header | | Fan headers | 1 x CPU, 3 x system | | BIOS | 128Mbit, AMI UEFI, Q-Flash Plus | | Operating system | Windows 11 / Windows 10 64-bit | | Form factor | Micro ATX, 24.4 x 24.4 cm |
|
