Motherboard MSI PRO B850M-P DDR5 AM5

Motherboard MSI PRO B850M-P

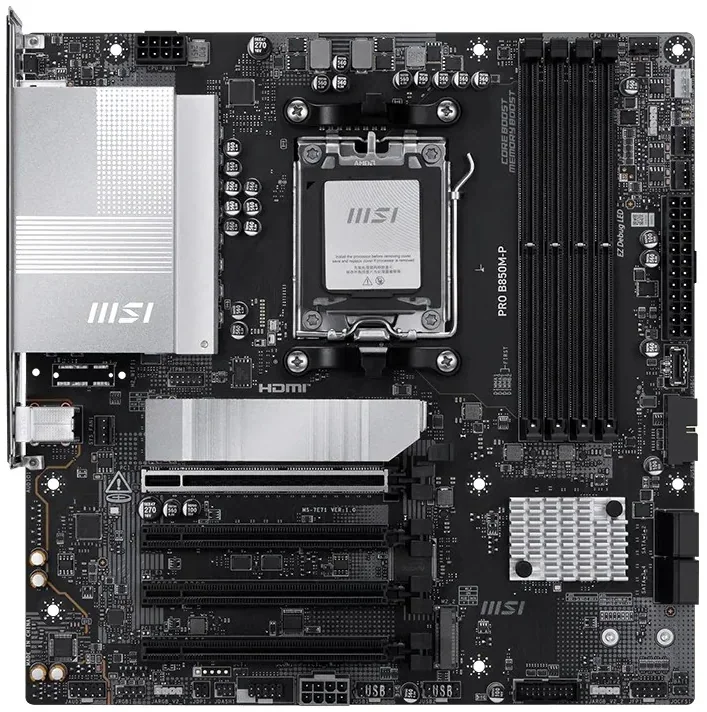

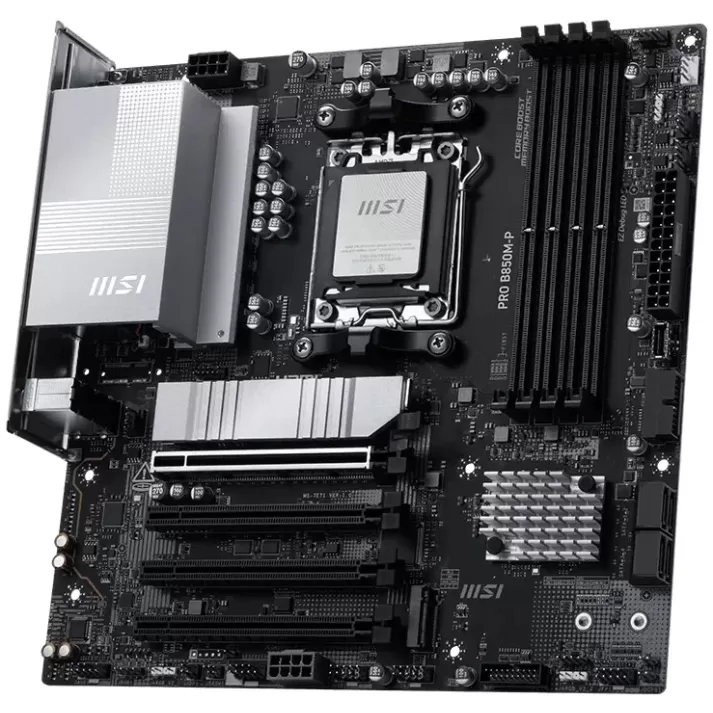

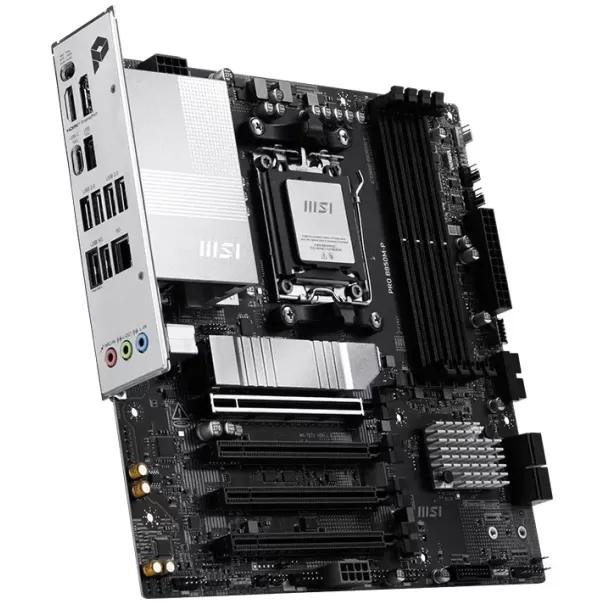

The MSI PRO B850M-P is a Micro ATX motherboard for socket AM5 built on the AMD B850 chipset, supporting AMD Ryzen 9000, 8000 and 7000 processors. It has 4 DDR5 slots for up to 256GB with AMD EXPO and overclocked speeds up to 8200+ MT/s, a PCIe 5.0 x16 graphics slot, 3 M.2 slots (one of them PCIe 5.0 x4) and 4 SATA ports.

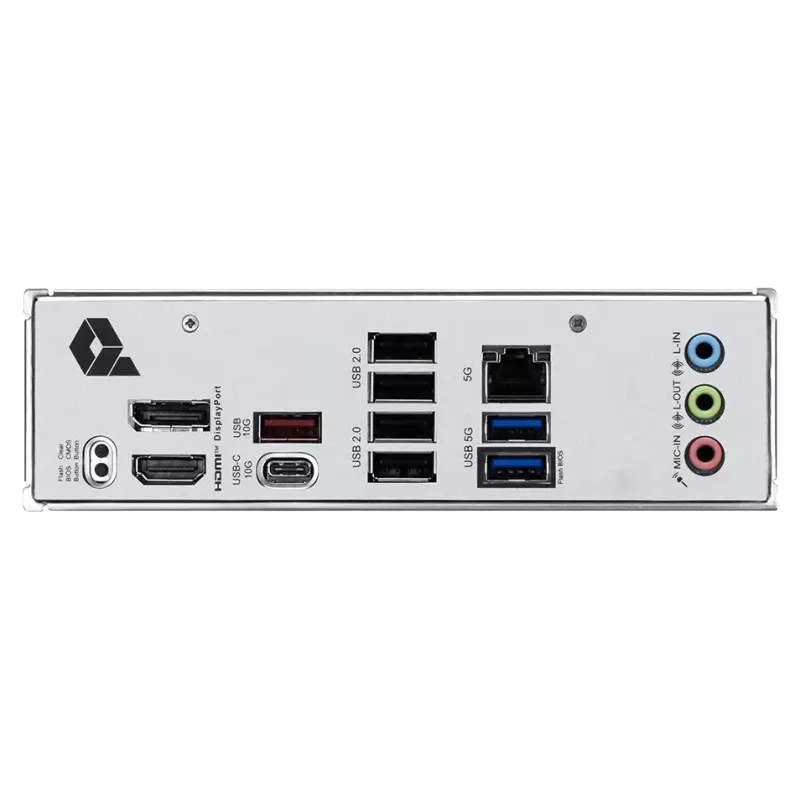

Its silver design fits both white and black builds. The board has a Direct 7+2+1 power design, a supplemental 8-pin PCIe power connector, Realtek 5G LAN, HDMI and DisplayPort outputs and Realtek ALC897 audio. This version has no Wi-Fi or Bluetooth. EZ M.2 Shield Frozr II and EZ PCIe Clip II make the build easier.

Key features

• Full PCIe 5.0 - A PCIe 5.0 x16 graphics slot from the CPU and a PCIe 5.0 x4 M.2 slot, plus 2 more PCIe 4.0 M.2 slots.
• 5G LAN - A Realtek 8126VB 5Gbps network controller.
• Supplemental PCIe power - An 8-pin PCIE_PWR connector delivers extra power to the graphics card slot.
• Direct 7+2+1 power - An extended heatsink and pump fan support for liquid cooling.
• Easy build - EZ M.2 Shield Frozr II for tool-free SSD installation, EZ PCIe Clip II for one-finger GPU release, plus Flash BIOS and Clear CMOS buttons.
