In the importer's stock
| Specification | |||||||||||||||||||||||||||||||||||||

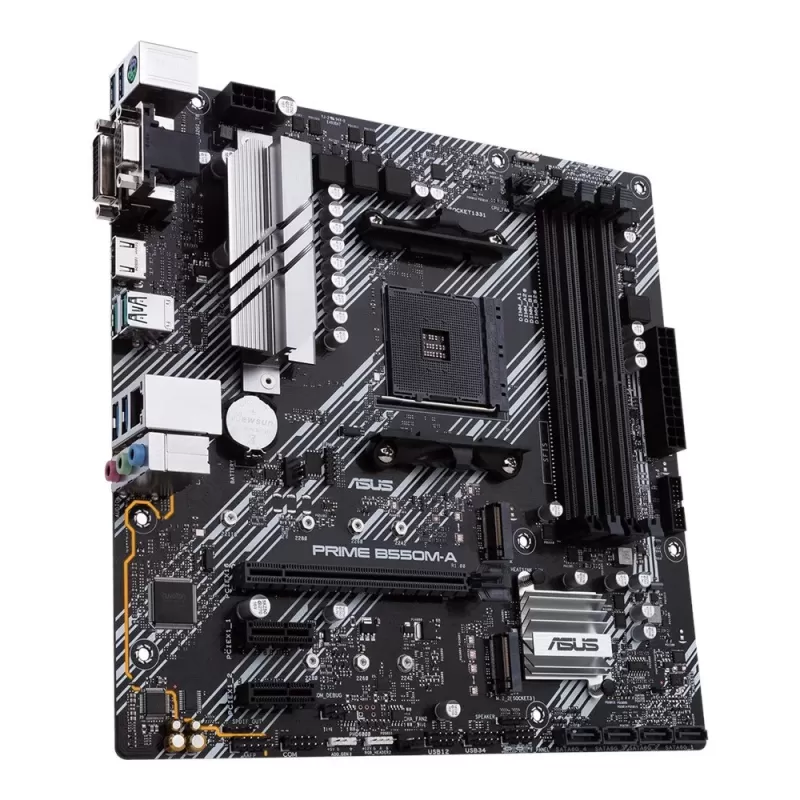

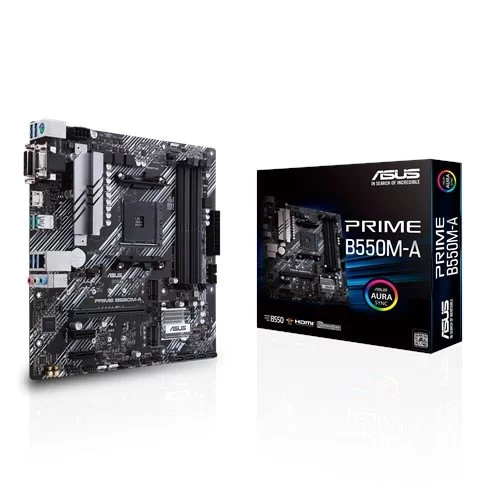

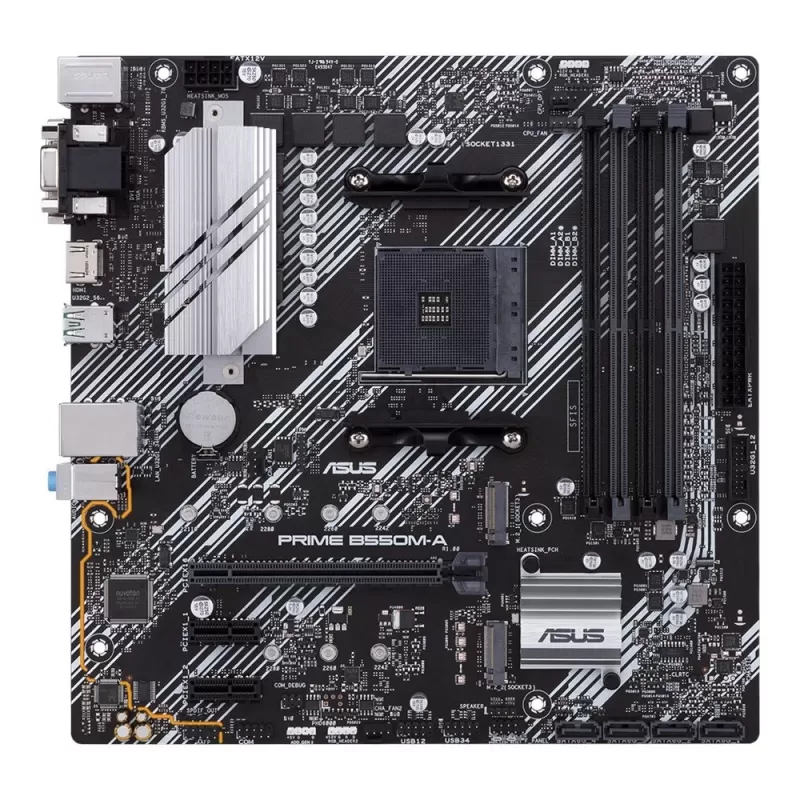

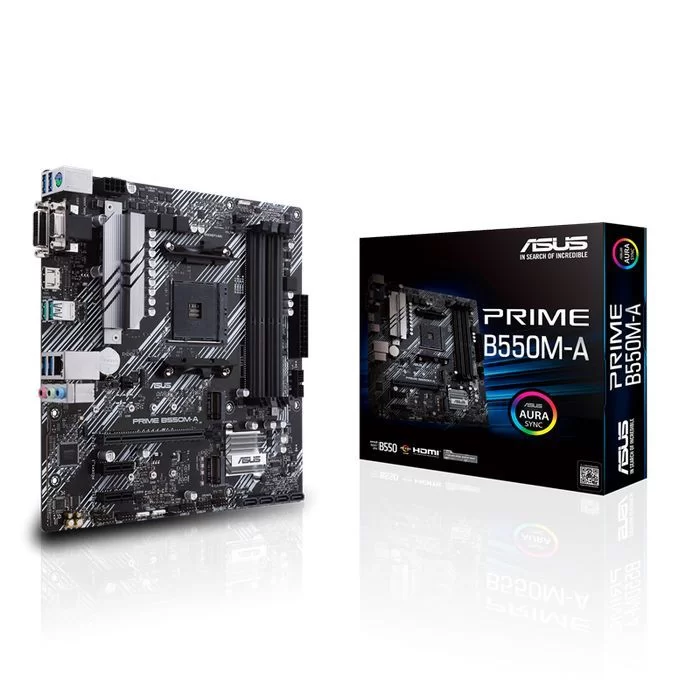

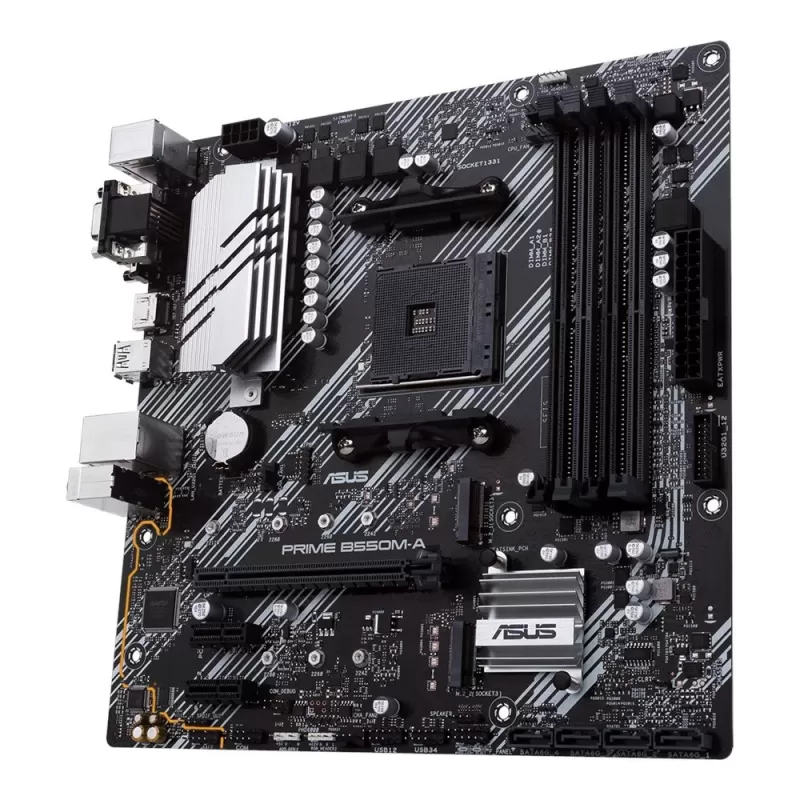

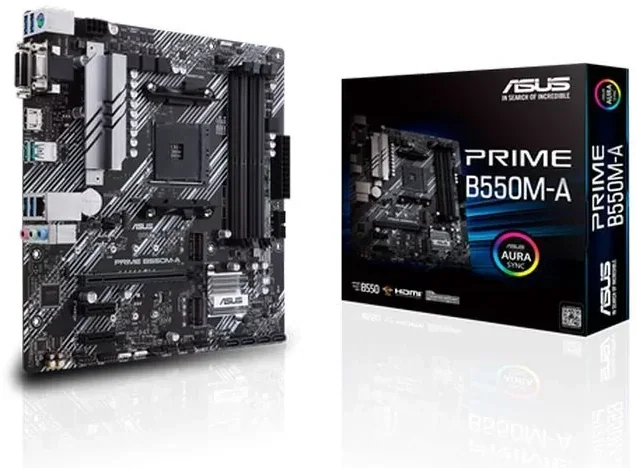

| Revew | Asus PRIME B550M-A MotherboardThe Asus PRIME B550M-A is an mATX motherboard for socket AM4 based on the AMD B550 chipset. It supports AMD Ryzen 5000, 5000G, 4000G and 3000 series processors and suits a home, office or entry-level gaming PC. The board has four DDR4 slots for up to 128GB of memory, a PCIe 4.0 x16 slot, two M.2 slots and four SATA ports, a Realtek 1Gb Ethernet controller and six USB ports on the rear panel. This model has no Wi-Fi.
Key features
Specifications
In the box
| ||||||||||||||||||||||||||||||||||||
| Review | |||||||||||||||||||||||||||||||||||||
| Warranty | 3 years | ||||||||||||||||||||||||||||||||||||
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod | ||||||||||||||||||||||||||||||||||||
| Manufacturer Part Number | PRIME B550M-A, 90MB14I0-M0EAY0 | ||||||||||||||||||||||||||||||||||||
| Model | PRIME B550M-A | ||||||||||||||||||||||||||||||||||||
| Condition | New | ||||||||||||||||||||||||||||||||||||
| EAN | 4718017755528 | ||||||||||||||||||||||||||||||||||||
| Manufacturer | Asus | ||||||||||||||||||||||||||||||||||||
| 1. 2xDDR4 DIMM sockets supporting up to 32GB of system memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * AMD Ryzen 4000 G-Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | ||||||||||||||||||||||||||||||||||||
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Choose the chassis with HD audio module in front panel to support 8-channel audio output. | ||||||||||||||||||||||||||||||||||||

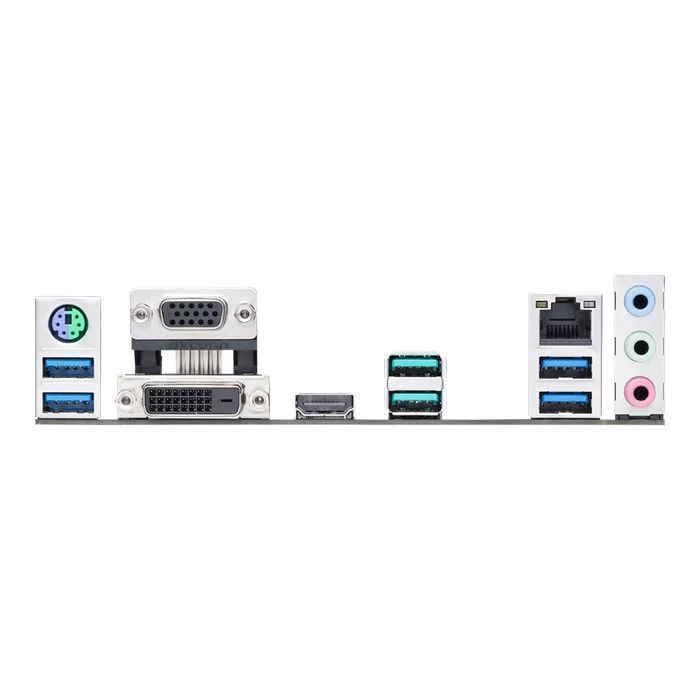

| Back Panel Connectors | 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) | ||||||||||||||||||||||||||||||||||||
| Chipset | B550 | ||||||||||||||||||||||||||||||||||||
| Compatibility for computer assembly | AMD Motherboards | ||||||||||||||||||||||||||||||||||||
| Configuration | Micro ATX | ||||||||||||||||||||||||||||||||||||
| Internal Ports / Inputs | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector | ||||||||||||||||||||||||||||||||||||
| Memory Frequency | 4600MHz | ||||||||||||||||||||||||||||||||||||
| Memory Type | DDR4 DIMM | ||||||||||||||||||||||||||||||||||||
| Socket | AM4 | ||||||||||||||||||||||||||||||||||||
| Storage | Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 | ||||||||||||||||||||||||||||||||||||
| Wired Communication | Realtek RTL8111H 1Gb Ethernet | ||||||||||||||||||||||||||||||||||||

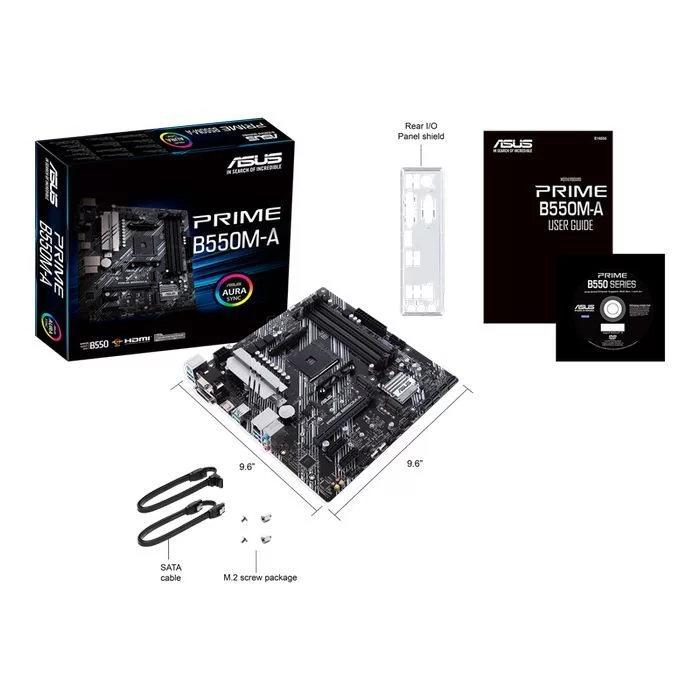

| What'S In The Box? | I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD User manual 1 x M.2 SSD screw package(s) | ||||||||||||||||||||||||||||||||||||
| Link To The Manufacturer'S Website | |||||||||||||||||||||||||||||||||||||
| Product Link | Motherboard Asus PRIME B550M-A DDR4 DIMM AM4 | ||||||||||||||||||||||||||||||||||||
| Matching SKUs | ID:~41366~, NEW, OC: 22771, EASX: 90MB14I0-M0EAY0, VSL: PRIME B550M-A, VSL2: 90MB14I0-M0EAY0, CD: 90MB14I0-M0EAY0, MPN: PRIME B550M-A, MPN2: 90MB14I0-M0EAY0, EAN: 4718017755528 | ||||||||||||||||||||||||||||||||||||
