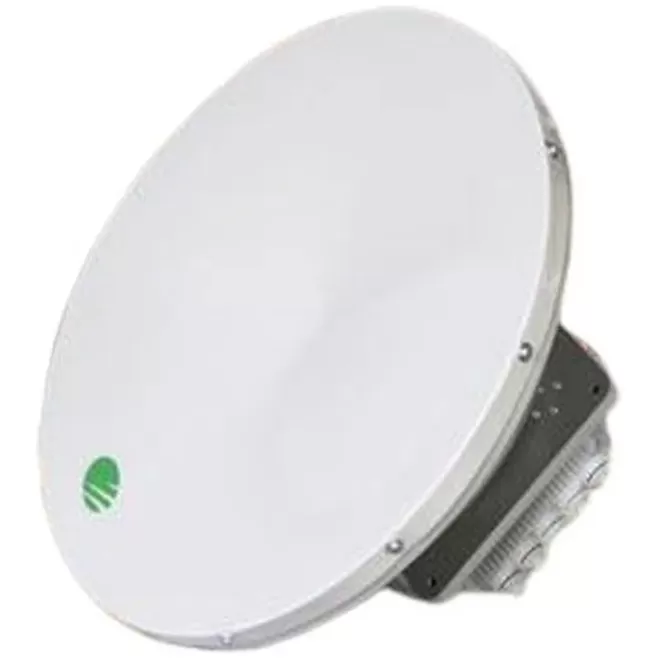

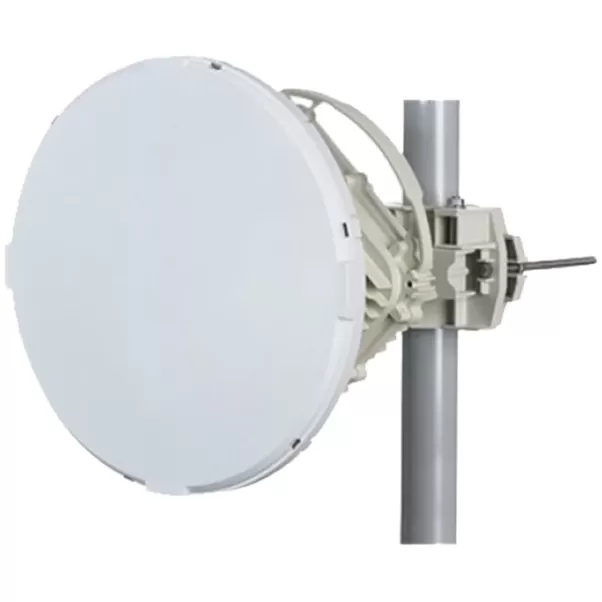

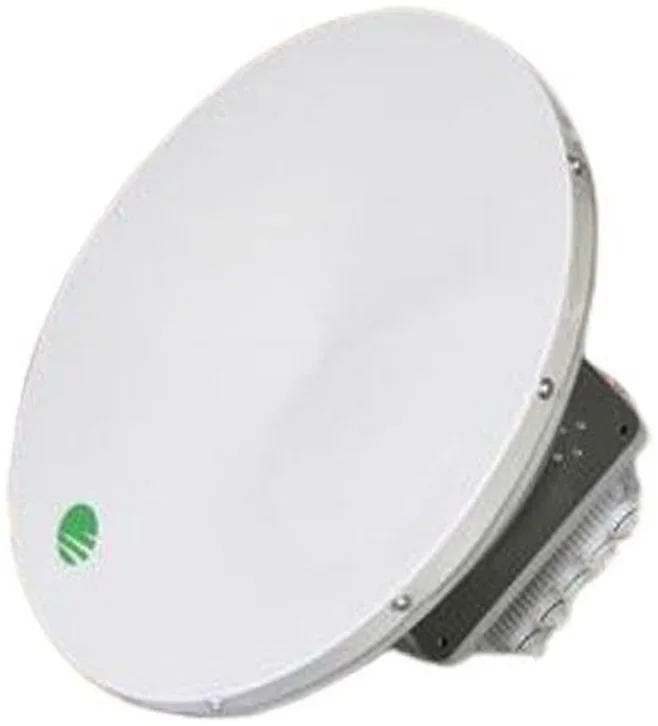

| Revew | Siklu E-band 1ft AntennaThe EH-ANT-1ft-B is a Siklu 1ft (approx. 32 cm) external dish antenna for the 71-86GHz E-band, with 43dBi gain and a 0.9° beam. It is the most common antenna in EtherHaul links, with a good balance of range, size and weight. The antenna fits EH-700TX/710T/710TX, EH-1200, EH-2200, EH-2500, EH-5500FD and EH-8010FX, and is pole-mounted together with the radio using the AX-MK-1ft-B mounting kit (or EH-MK-1ft for EH-7xx radios), sold separately.
Key features- 43dBi gain - A 1ft dish with 43dBi ±2dB gain for medium and long E-band links.
- Light and compact - Only 2.2 kg and 141 mm deep, suitable for rooftops, masts and street poles.
- Wide EtherHaul compatibility - Fits EH-700TX/710T/710TX, EH-1200T/TX/F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD and EH-8010FX.
- FCC and ETSI - Complies with ETSI EN 302 217-4-2 Class 2 and FCC 47CFR101.
- Built for outdoors - IP67 when mounted on the radio, and wind survival up to 220 km/h.

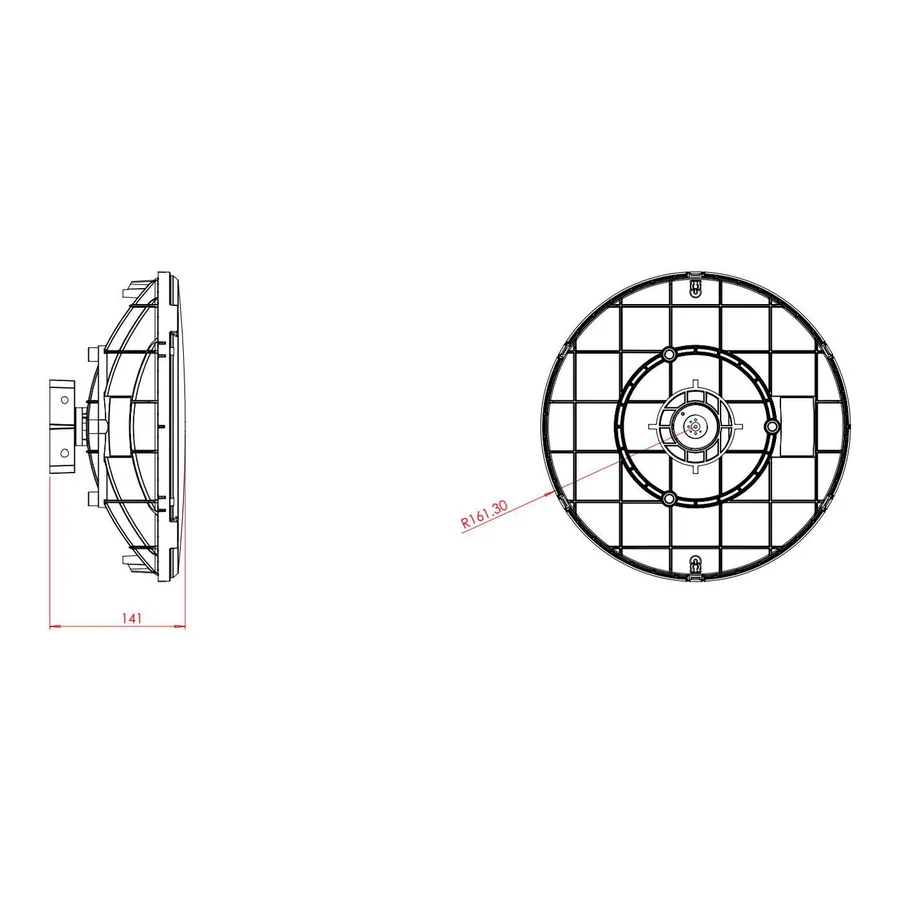

Specifications| Manufacturer | Siklu | | Part number | EH-ANT-1ft-B | | Type | External dish antenna | | Diameter | 1ft (Ø322.6 mm) | | Frequency range | 71-86GHz (E-band) | | Gain | 43dBi ±2dB | | 3dB beamwidth | 0.9° | | Polarization | Linear vertical or horizontal | | Max. input power | 10W | | Interface | Circular waveguide E-band | | Regulatory | ETSI EN 302 217-4-2 Class 2, FCC 47CFR101 | | Compatibility | EtherHaul EH-700TX/710T/710TX, EH-1200T/TX/F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX | | Mounting kit | AX-MK-1ft-B or EH-MK-1ft, also AX-MK-SP for EH-8010FX (sold separately) | | Radome | Plastic | | Weight | 2.2 kg | | Depth | 141 mm | | Environmental | IP67 when correctly mounted on the radio, wind survival 220 km/h, operational 160 km/h, ice up to 25 mm radial |
|
