Switch Teltonika TSW304 Color:black

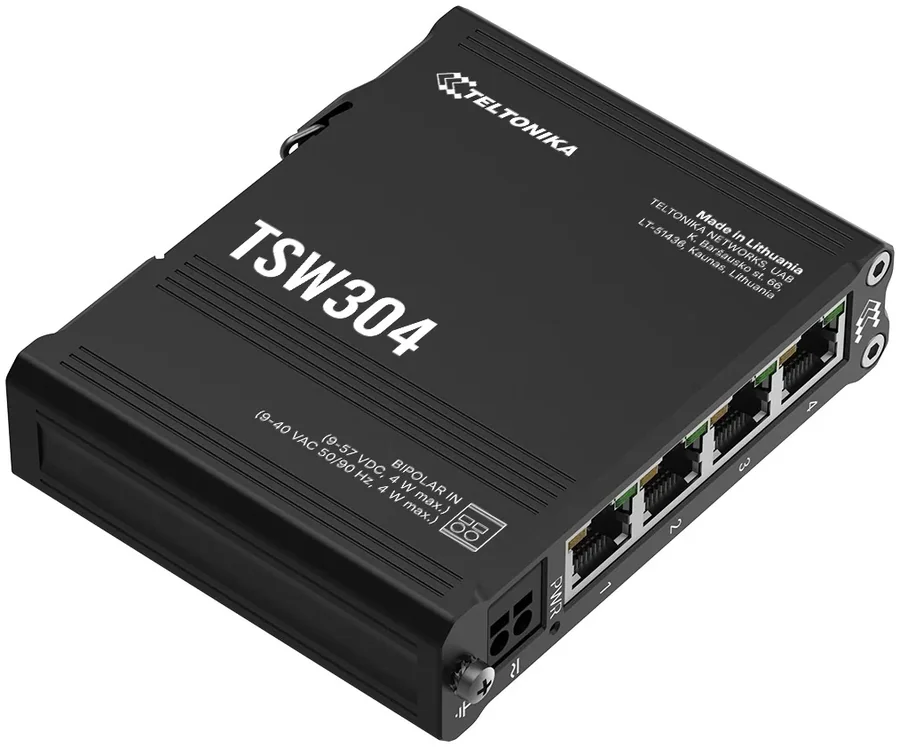

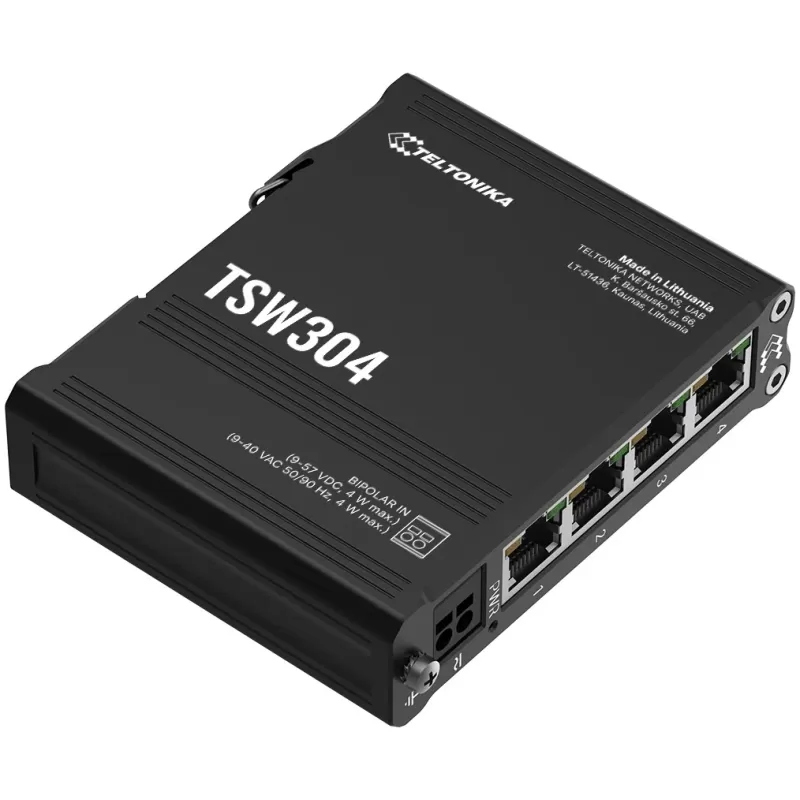

Industrial Network Switch Teltonika TSW304

The Teltonika TSW304 is an unmanaged Ethernet switch and the smallest switch in the Teltonika portfolio, designed for industrial applications. Four 10/100/1000 Mbps RJ45 ports connect controllers, cameras, routers and computers inside an electrical or network cabinet, and the DIN rail bracket is built into the housing.

The switch accepts a wide voltage range, 7 to 57 V DC or 9 to 40 V AC, through a 2-pin industrial socket and can also be powered by passive PoE on port 1. The durable IP30 aluminium housing operates from -40 °C to +75 °C and draws no more than 1.44 W.

Key features

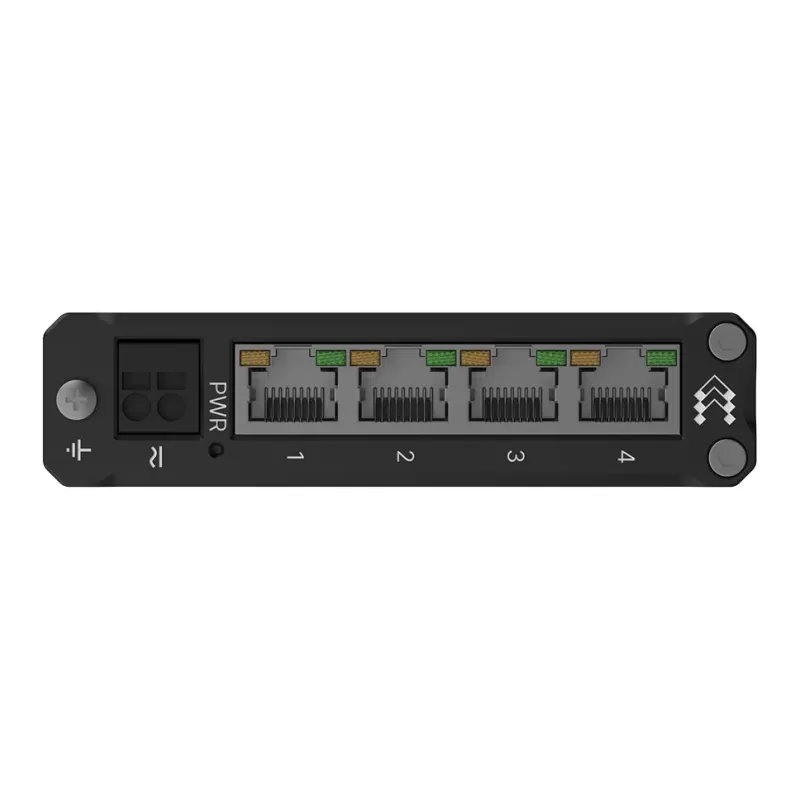

• 4 Gigabit ports - Four 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX, 8 Gbps non-blocking bandwidth and jumbo frames up to 9216 bytes.

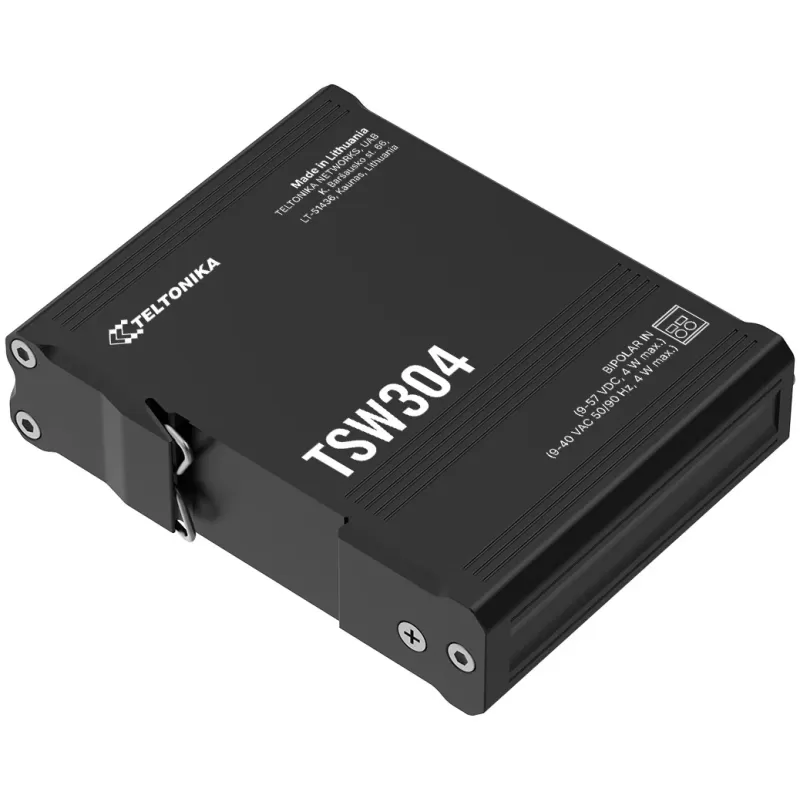

• DIN rail mounting - The DIN rail bracket is integrated into the housing, so the switch fits an electrical or network cabinet without extra parts.
• Flexible power - 7-57 V DC or 9-40 V AC input through a 2-pin industrial socket, or passive PoE input on port 1.
• Built for industry - IP30 aluminium housing, -40 °C to +75 °C operation and 10% to 90% non-condensing humidity, with a grounding screw.
• Small and efficient - 102 x 25 x 81.5 mm, 210 g and 0.26 W idle up to 1.44 W maximum consumption, with 802.3az support.

Specifications

In the box

• Teltonika TSW304 switch
• Quick start guide (QSG)
