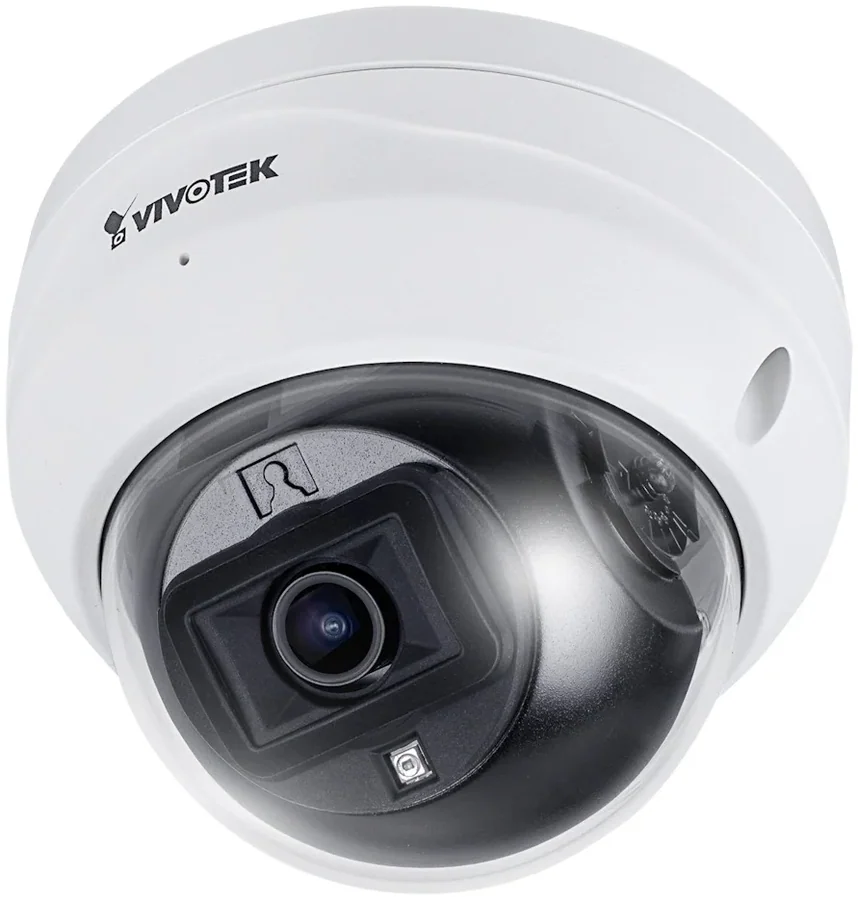

| Revew | VIVOTEK FD9369 2MP 2.8mm Outdoor Fixed Dome Network CameraThe VIVOTEK FD9369 is an outdoor dome camera with Full HD (1920x1080) resolution at 30fps, a 1/3.1" sensor and a fixed 2.8 mm F2.0 lens. Its 116° horizontal and 140° diagonal field of view covers a wide area such as a parking lot, a yard or a building entrance. An IR LED with Smart IR reaches up to 30 m, and Smart Motion Detection recognizes people and vehicles to reduce false alarms. The camera has a built-in microphone, is powered by PoE or 12V DC with redundancy, and its IP66 and IK10 housing resists water, dust and impacts.
Key features- Wide 140° view - A 2.8 mm lens with a 116° horizontal and 65° vertical view at 1920x1080 and 30fps.
- Smart Motion Detection - Five-window motion detection with people and vehicle detection and a time filter that reduces false alarms.
- Night vision up to 30 m - An IR LED with anti-overexposure Smart IR, a removable IR-cut filter and WDR Enhanced. Sensitivity of 0.08 lux in color and 0 lux with IR.
- Dual power input - PoE 802.3af Class 0 or 12V DC, with simultaneous connection supported for redundancy. Max. 6.49W on PoE.
- Built for outdoor use - An IP66 and IK10 rated housing that works from -30°C to 55°C and at up to 95% humidity.
- Audio and storage - A built-in microphone with a 5 m range, recording to a microSD card or NAS and H.265 compression with Smart Stream III.
Specifications| Manufacturer | VIVOTEK | | Model | FD9369 (FD9369-F2) | | Type | Outdoor fixed dome camera | | Image sensor | 1/3.1" Progressive CMOS | | Resolution and frame rate | 1920x1080 (2MP) at 30fps | | Lens | Fixed 2.8 mm, F2.0 | | Field of view | 116° horizontal, 65° vertical, 140° diagonal | | IR illumination | 1 LED, up to 30 m, Smart IR | | Minimum illumination | 0.08 lux in color, below 0.005 lux in B/W, 0 lux with IR | | Image enhancement | WDR Enhanced, S/N 59dB, 3DNR, Defog, BLC, HLC | | Compression | H.265, H.264, MJPEG, 2 streams, Smart Stream III | | Video analytics | Smart Motion Detection: people and vehicle detection, time filter | | Audio | Built-in microphone up to 5 m, G.711/G.726 | | Storage | microSD/SDHC/SDXC, recording to NAS | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T, up to 10 viewers | | Power input and consumption | PoE 802.3af Class 0 or DC 12V with redundancy, max. 6.49W (PoE), max. 5.1W (12V) | | Adjustment range | Pan 350°, Tilt -10° to 75° | | Protection | IP66, IK10 | | Operating temperature | -30°C to 55°C (IR off), -30°C to 50°C (IR on) | | Dimensions and weight | Ø110 x 85 mm, 465 g |
In the box- VIVOTEK FD9369 camera
- Alignment sticker
- Screw pack
- Cable gland
- Desiccant bag
- Quick installation guide
|
