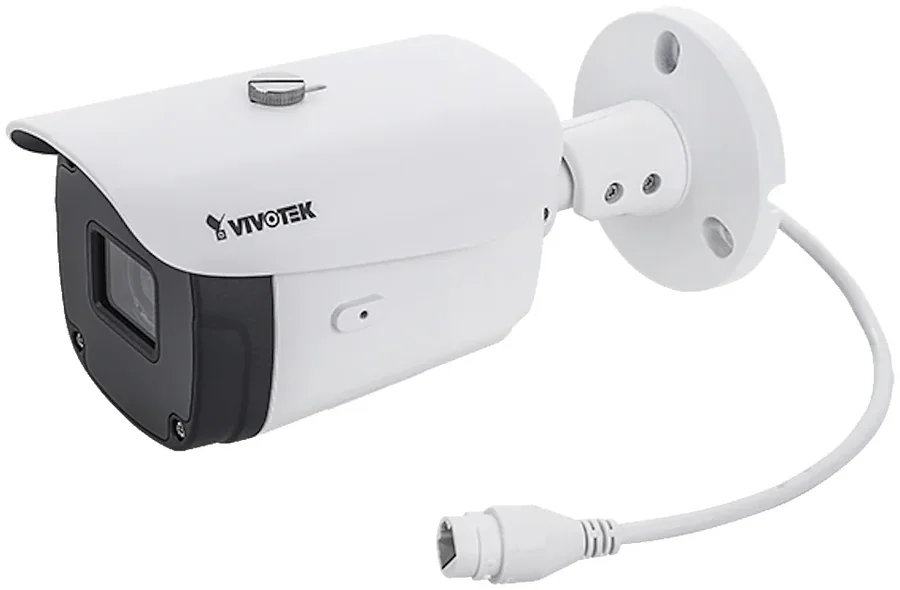

| Revew | VIVOTEK IB9388-HT 5MP 2.8-12mm Remote Focus Outdoor Bullet Network CameraThe VIVOTEK IB9388-HT is an outdoor bullet network camera with a 1/2.7" progressive CMOS sensor that records 5MP (2560x1920) at 20fps. Its 2.8-12 mm F1.4-F2.8 motorized lens lets you adjust zoom and focus remotely, without climbing up to the camera, between a 90° and a 30° horizontal field of view. WDR Pro with a 120dB range and SNV for low light keep the image clear day and night, and two IR LEDs reach up to 30 m. The camera is powered over PoE, records to a microSD card or NAS, supports ONVIF and is protected by Trend Micro IoT Security, and its housing is rated IP66 and IK10.
Key features- 2.8-12 mm motorized lens - Remote zoom and focus from the management interface, with a 90° to 30° horizontal field of view and F1.4 at the wide end.
- 5MP with WDR Pro - 2560x1920 at 20fps, a 120dB dynamic range and a 67dB signal-to-noise ratio.
- Night vision up to 30 m - Two IR LEDs with Smart IR, a removable IR-cut filter and SNV. Sensitivity of 0.035 lux in color and 0 lux with IR.
- Bandwidth savings - H.265, H.264 and MJPEG compression with Smart Stream III, up to 3 streams and 8 profiles, and up to 48x ePTZ digital zoom.
- Cybersecurity - Trend Micro IoT Security detects brute force attacks and cyberattacks, alongside HTTPS, IEEE 802.1x and an access list.
- Built for outdoor use - An IP66 and IK10 rated housing that works from -30°C to 60°C, powered by PoE 802.3af Class 0.
Specifications| Manufacturer | VIVOTEK | | Model | IB9388-HT | | Type | Outdoor bullet camera | | Image sensor | 1/2.7" Progressive CMOS | | Resolution and frame rate | 2560x1920 (5MP) at 20fps | | Lens | Motorized vari-focal 2.8-12 mm, F1.4-F2.8, remote zoom and focus | | Field of view | 90°-30° horizontal, 65°-23° vertical, 115°-38° diagonal | | IR illumination | 2 LEDs, up to 30 m, Smart IR | | Minimum illumination | 0.035 lux in color, below 0.005 lux in B/W, 0 lux with IR | | Image enhancement | WDR Pro 120dB, S/N 67dB, 3DNR, Defog, BLC, HLC | | Compression | H.265, H.264, MJPEG, up to 3 streams, Smart Stream III | | Video analytics | Five-window motion detection, camera tampering detection | | Storage | microSD/SDHC/SDXC, recording to NAS | | Network | RJ-45 10/100Mbps, ONVIF Profile G/S/T, up to 10 viewers | | Power input and consumption | PoE 802.3af Class 0, max. 12.95W (IR on), 9W (IR off) | | Adjustment range | Tilt 90°, Rotation 180° | | Protection | IP66, IK10 | | Operating temperature | Working: -30°C to 60°C, starting: -10°C to 60°C | | Dimensions and weight | 85 x 85 x 214.5 mm, 738 g | | Color | White |
In the box- VIVOTEK IB9388-HT camera
- Alignment sticker
- Screw pack
- Cable gland
- Quick installation guide
|
