Connections DAHUA PFA13A-E DH-PFA13A-E Color:white

DAHUA PFA13A-E Camera Junction Box

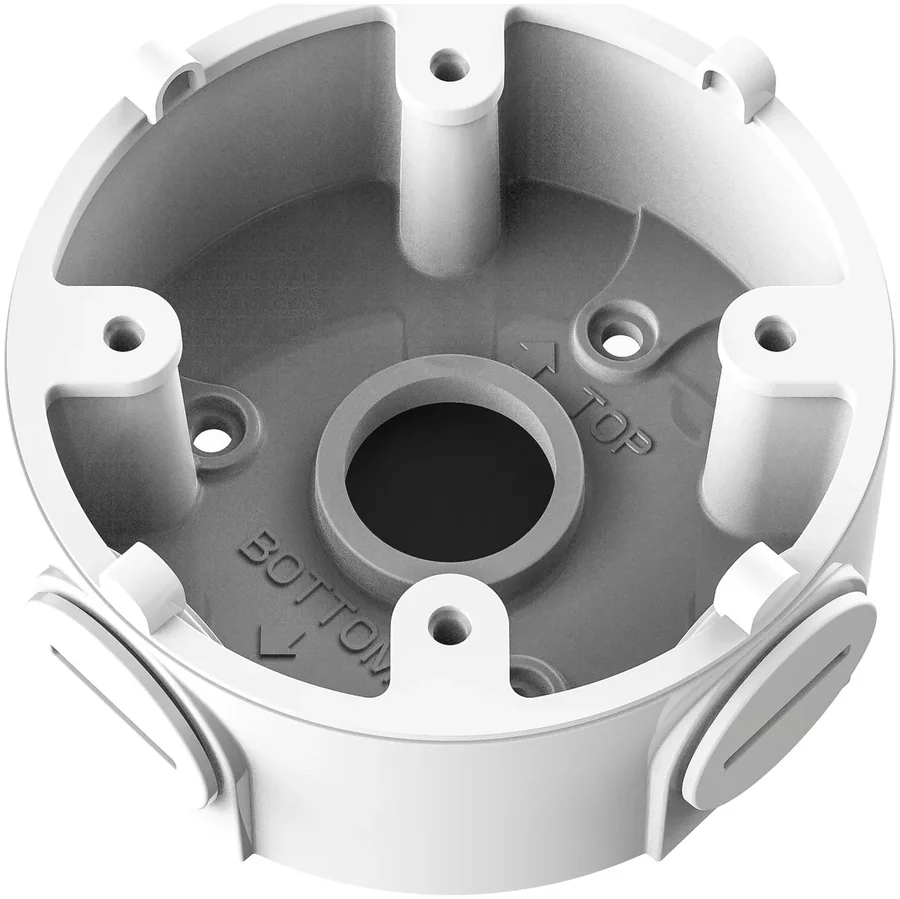

The Dahua PFA13A-E is a compact junction box that mounts under the security camera on a wall or ceiling. It hides and protects the camera's cables and connectors, giving the installation a clean and tidy look.

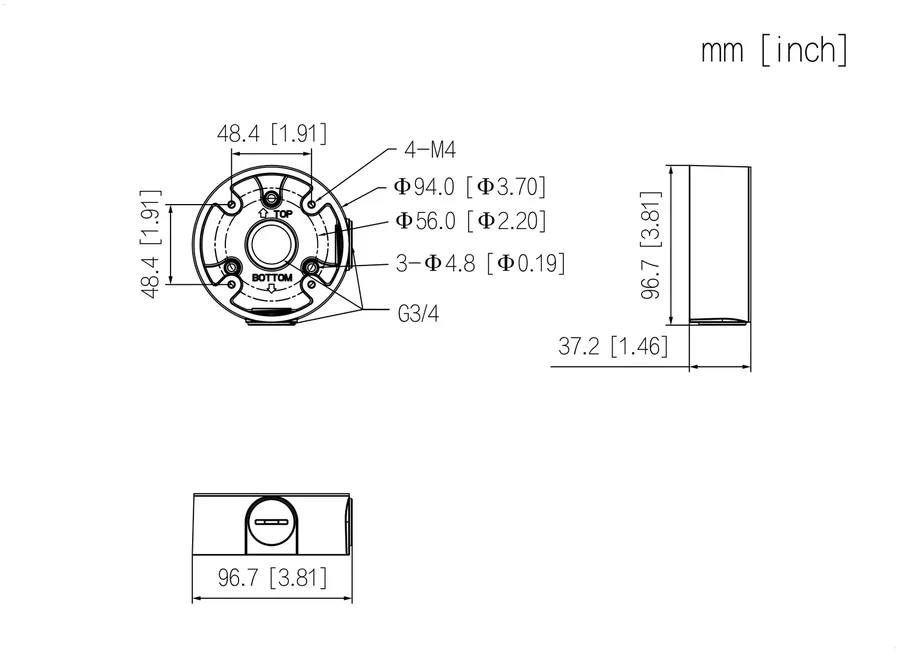

The box is made of white aluminum, measures 96.7 mm in diameter and 37.2 mm in height, and bears up to 3 kg. The side outlet has a G3/4 pipe thread, and it works at temperatures from -40°C to +60°C. Screws, anchors, a wrench and a mounting sticker are included.

Key features

• Clean design - Cables and connectors go inside the box, and the camera sits on top of it as one neat unit.
• White aluminum finish - A strong aluminum body that matches the look of Dahua cameras.
• G3/4 pipe thread - A side outlet with a G3/4 thread lets you run the cables through protective conduit.
• Small but strong - It measures 96.7 x 37.2 mm and weighs only 0.17 kg, yet bears up to 3 kg.
• Complete installation kit - M4x10 screws, ST4x25 screws with anchors, an S3.0 wrench and a mounting sticker for accurate drilling.
• Wide temperature range - Works from -40°C to +60°C and at 0 to 90% humidity, indoors and outdoors.

Specifications

In the box

• PFA13A-E junction box
• 4 x M4x10 screws
• 3 x ST4x25 screws with anchors
• Mounting sticker
• S3.0 wrench
