Remote HDCVI DAHUA PFM820 DH-PFM820 Color:white

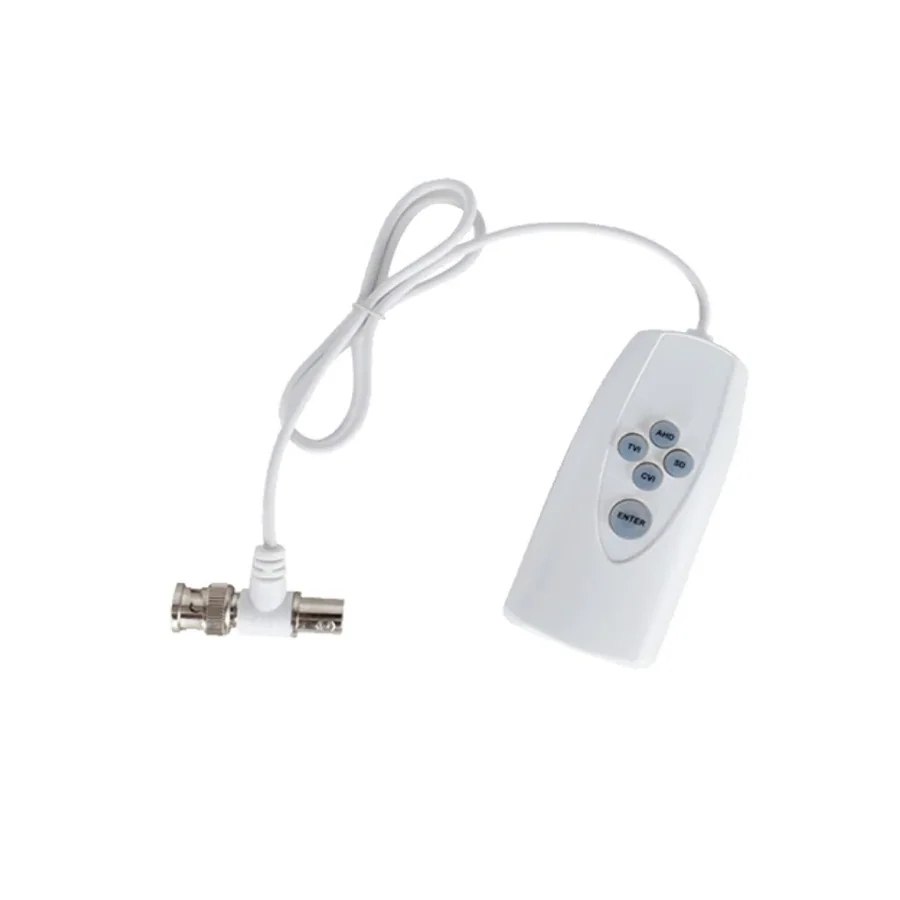

DAHUA PFM820 HDCVI Camera Controller

The Dahua PFM820 is a wired UTC controller that connects to the video line of an analog camera and switches its output format between HDCVI, AHD, HDTVI and CVBS. This makes it easy to match the camera to the type of recorder installed on site.

Indicator lights show which format the camera is using and confirm that the switch succeeded. In CVBS mode the controller also opens the camera OSD menu and controls the electric zoom. It runs on two AAA batteries, consumes 0.3W and works with Dahua HDCVI bullet cameras.

Key features

• Four video formats - HDCVI, AHD, HDTVI and CVBS to match different types of recorders.
• Indicator lights - Show the current format and confirm that the switch is complete.
• OSD menu and zoom - In CVBS mode you can navigate the camera menu and control the electric zoom.

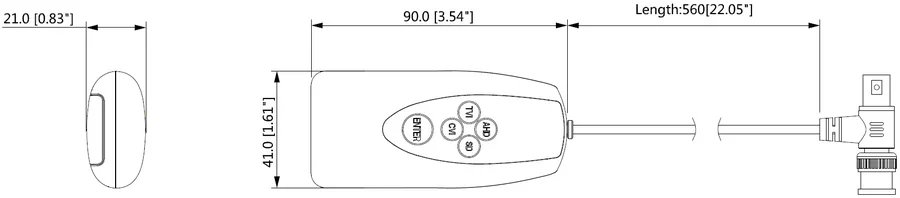

• Small and portable - 90 x 41 x 21 mm body, 560 mm cable and a weight of only 48 g.
• Battery powered - Two AAA batteries and 0.3W consumption, no power adapter needed.

Specifications

In the box

• PFM820 UTC controller
• Application manual
