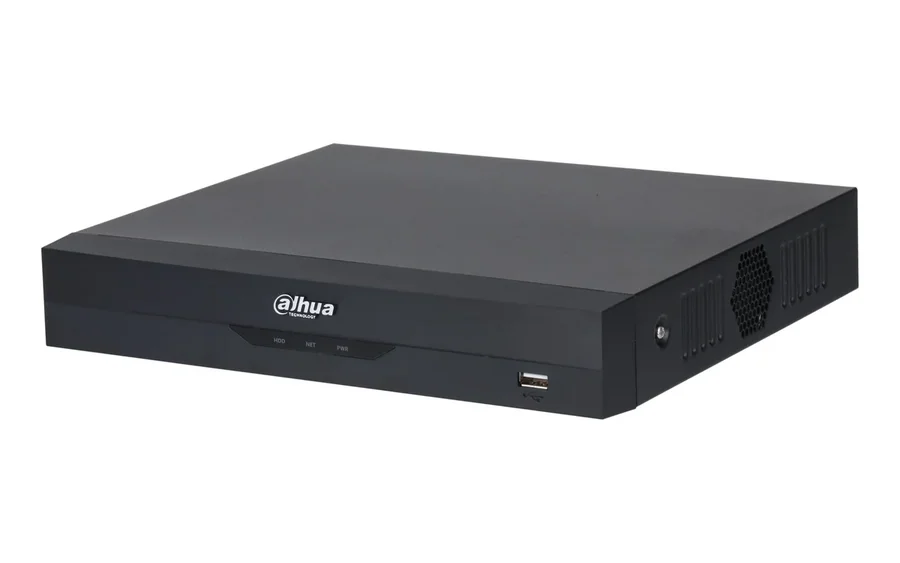

| Revew | 4-Channel Hybrid Video Recorder DAHUA XVR5104HS-4KL-I3 1TBThe Dahua XVR5104HS-4KL-I3(1T) is a Penta-brid S-XVR recorder that ships with a 1TB SSD already installed. It accepts 4 analog cameras over HDCVI, AHD, TVI and CVBS at up to 4K, plus IP cameras: 4 dedicated IP channels and up to 8 in total when analog channels are switched to IP. According to the manufacturer, the SSD holds about 18 days of recording at default settings. As a WizSense model it runs 4-channel SMD Plus, perimeter protection with tripwire and intrusion detection, and 2-channel face recognition on the recorder itself. The SSD uses less power and handles vibration better than a hard drive, and saves you choosing and installing a disk. It has 4K HDMI and VGA outputs, two-way audio, RS-485 for PTZ control and mobile app access.
Key features- 1TB SSD installed - No disk to buy or fit: the SSD is already inside, draws less power, resists vibration and records for about 18 days at default settings.
- Five video standards - HDCVI, AHD, TVI, CVBS and IP, so you can keep existing analog cameras and add new network cameras.
- Up to 8 IP cameras - 4 dedicated IP channels plus 4 more when analog channels are converted to IP, with cameras up to 8MP and 64 Mbps bandwidth.
- WizSense AI - 4-channel SMD Plus against false alarms, perimeter protection with tripwire and intrusion, and 2-channel face recognition.
- AI Coding and Smart H.265+ - Smart encoding lowers bitrate and storage use while keeping human and vehicle details.
- More features - Smart dual illumination with compatible cameras, one-click arming and disarming, custom alarm audio and POS support.
Specifications| Manufacturer | Dahua | | Model | XVR5104HS-4KL-I3(1T) | | Form factor | Compact 1U, rack or desktop | | Analog inputs | 4 x BNC, HDCVI/AHD/TVI/CVBS auto-detect | | Analog resolution | HDCVI up to 4K, TVI and AHD up to 4K@15 fps | | IP cameras | Up to 8 (4 dedicated plus 4 converted from analog), up to 8MP | | IP bandwidth | 64 Mbps incoming, recording and outgoing | | AI by recorder | 4-ch SMD Plus, 2 to 4-ch perimeter protection, 2-ch face recognition | | Video compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 | | Video outputs | HDMI (up to 3840x2160), VGA (up to 1920x1080) | | Storage | 1TB SSD installed, about 18 days at default settings | | Audio | RCA in plus 4-ch coaxial audio, RCA out, two-way talk | | RS-485 | 1 port for PTZ control | | Network | 1 x RJ-45 10/100 Mbps | | USB | 2 x USB 2.0 (front and rear) | | Interoperability | ONVIF (Profile S, G, T), CGI, SDK | | Power supply | 12 VDC, 2 A | | Power consumption | <7 W with SSD | | Dimensions (W x D x H) | 260 x 237.9 x 47.6 mm | | Weight | 0.96 kg net, 1.37 kg gross |
|
