Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer

Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer
Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer
Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer
In Ashdod Branch Stock
Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer
Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer
Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer

* The picture is for illustration only

Short review: Used, lab-tested Micro ATX AM5 motherboard with the AMD B650 chipset: Ryzen 7000/8000/9000 support, 4 DDR5 slots with EXPO and XMP, 2 x M.2 PCIe 4.0 x4, Wi-Fi 6E, 2.5GbE LAN and two 10Gb/s USB-C connections., Manufacturer: Gigabyte, Socket: AM5, Chipset: B650, Memory Volume: 128GB, Memory Type: DDR5, Condition: Used, SKU: 77461
Motherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used - official importer

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 6 interest-free Credit Card (7-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted), Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Наличие: In stock at Ashdod branch
    • Print:
    • Brand: Gigabyte
    • SKU: 77461
    • MPN: B650M GAMING X AX
    Gigabyte Gigabyte
    ₪399
    Add to Cart
    Buy Now!
    Add to Wish List Compare this Product
    Send us a question on WhatsApp
    Send a question about this product
    Specification
    Revew

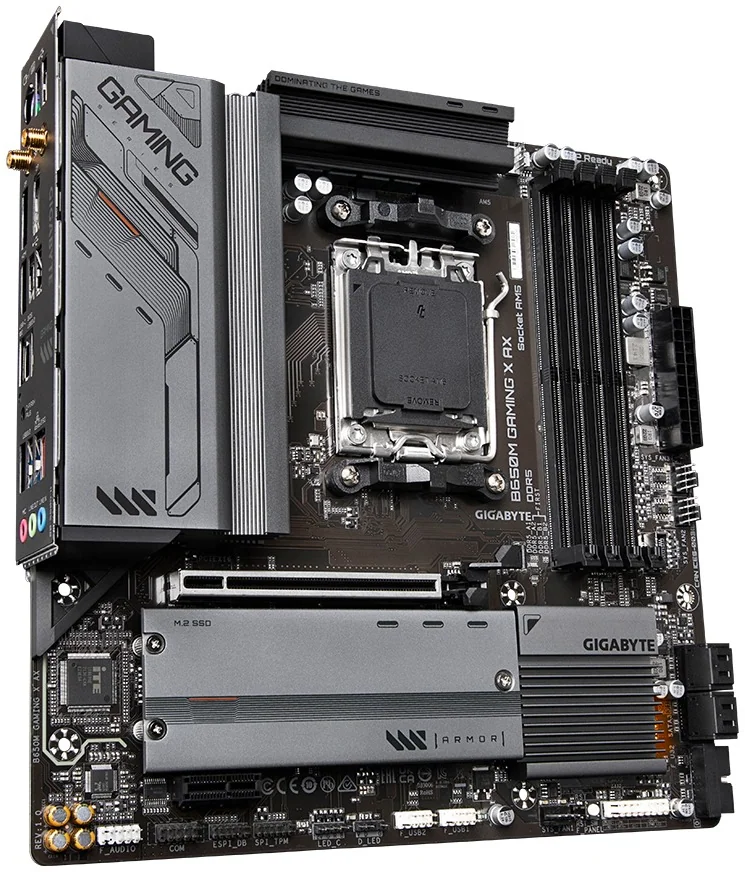

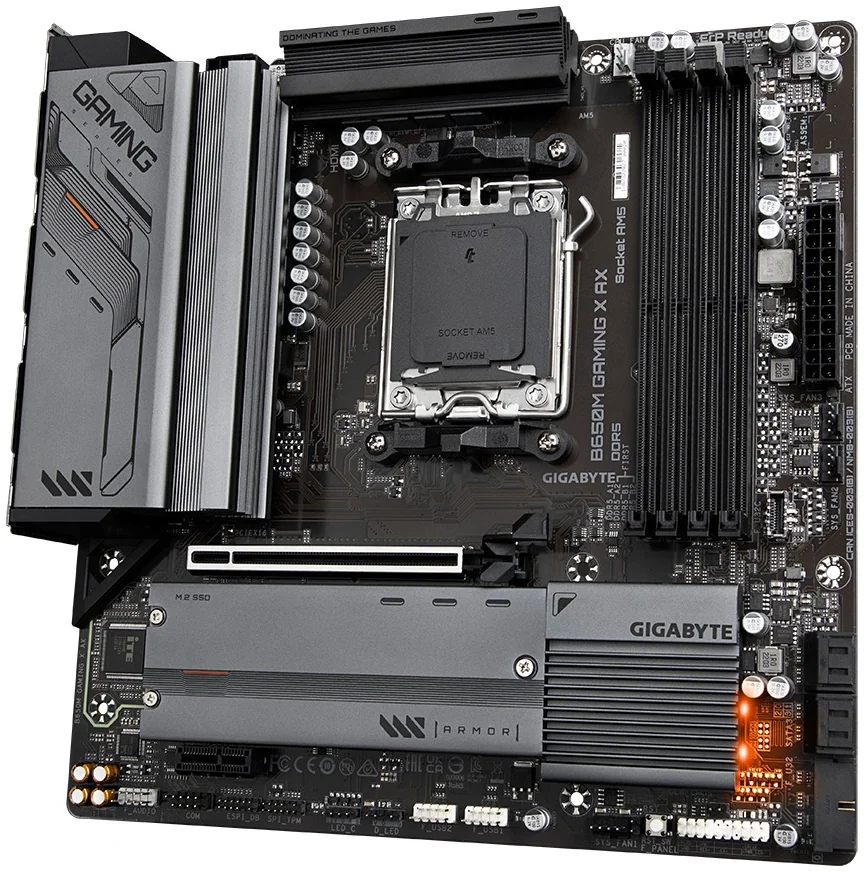

    Motherboard Gigabyte B650M GAMING X AX

    The Gigabyte B650M GAMING X AX (PCB rev. 1.x) is a Micro ATX (24.4 x 24.4 cm) motherboard for the AMD AM5 socket with the AMD B650 chipset. According to Gigabyte it supports AMD Ryzen 7000, 8000 and 9000 processors, dual-channel DDR5 memory and fast PCIe 4.0 NVMe storage. The board is used and has been tested in our lab.

    It is a solid base for a compact gaming or work PC on the AM5 platform: a direct 6+2+1 phase digital VRM with 60A smart power stages, 4 DDR5 slots with AMD EXPO and Intel XMP profile support, a PCIe 4.0 x16 slot for the graphics card and two M.2 PCIe 4.0 x4 slots with a thermal guard.

    For connectivity there is 2.5GbE LAN, Wi-Fi 6E with Bluetooth and an antenna, two DisplayPort outputs and HDMI for the processor graphics, a rear 10Gb/s USB-C port and a front USB-C header at the same speed. The Q-Flash Plus button updates the BIOS without a CPU, memory or graphics card installed, which is especially handy when fitting a newer processor.

    Motherboard Gigabyte B650M GAMING X AX

    Key features

    • Digital 6+2+1 VRM - A direct 6+2+1 phase digital VRM with 60A smart power stages, a 6-layer 2X copper PCB and a solid pin power connector for stable performance under load.
    • Advanced thermal design - Fully covered MOSFET heatsinks with a 5 W/mK thermal pad, and an M.2 Thermal Guard over the M.2 slots that keeps fast SSDs from throttling.
    • DDR5 with EXPO and XMP - 4 DDR5 slots in dual channel with AMD EXPO and Intel XMP profile support; Gigabyte quotes memory overclocking up to 8000 and beyond, plus DDR5 Auto Booster and an XMP 3.0 user profile.

    Motherboard Gigabyte B650M GAMING X AX

    • 2 x M.2 PCIe 4.0 - Two CPU-attached M key M.2 slots for 2280 or 25110 SSDs at PCIe 4.0 x4, plus 4 SATA 6Gb/s ports with RAID 0, 1 and 10.
    • EZ-Latch - Quick release for the graphics card in the PCIe x16 slot and screwless SSD installation in the M.2 slots.
    • Fast networking - 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) and Wi-Fi 6E 802.11ax 2T2R on 2.4/5/6 GHz, up to 2.4 Gbps, with Bluetooth and an external antenna.

    Motherboard Gigabyte B650M GAMING X AX

    • Smart Fan 6 and Q-Flash Plus - 4 PWM/DC fan headers with temperature sensors, Fan Stop and precise fan curves, and a Q-Flash Plus button for BIOS updates without a CPU or memory.

    Motherboard Gigabyte B650M GAMING X AX

    Specifications

    ManufacturerGIGABYTE
    ModelB650M GAMING X AX (rev. 1.x)
    Form factorMicro ATX, 24.4 x 24.4 cm
    CPU socketAMD AM5
    Supported CPUsAMD Ryzen 7000 / 8000 / 9000 (per Gigabyte CPU support list and BIOS version)
    ChipsetAMD B650
    VRM6+2+1 digital phases, 60A smart power stage
    Memory4 x DDR5 DIMM, dual channel, non-ECC unbuffered
    Memory profilesAMD EXPO, Intel XMP
    Max memoryLaunch spec 128GB (32GB per DIMM); current Gigabyte data up to 256GB (64GB per DIMM)
    Video outputs2 x DisplayPort 1.4 (up to 3840x2160 at 144Hz), 1 x HDMI (up to 4096x2160 at 60Hz), up to 3 displays
    Expansion slots1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (chipset)
    M.22 x M.2 M key (2280/25110), PCIe 4.0 x4/x2, from CPU
    SATA4 x SATA 6Gb/s
    RAID0, 1, 10 for NVMe and SATA
    Wired LANRealtek 2.5GbE (RTL8125)
    WirelessWi-Fi 6E 802.11ax 2T2R, 2.4/5/6 GHz, up to 2.4 Gbps; Bluetooth 5.2 or 5.3 depending on PCB revision
    AudioRealtek ALC897, HD Audio up to 7.1 channels
    Rear USB1 x USB-C 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0
    Internal USB1 x USB-C 3.2 Gen 2 header, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
    Other rear I/OPS/2, 2 x SMA antenna connectors, Q-Flash Plus button, RJ-45, 3 audio jacks
    Internal connectors24-pin ATX, 8-pin ATX 12V, 1 x CPU_FAN, 3 x SYS_FAN, ARGB, RGB, TPM, serial (COM) header
    BIOSAMI UEFI, 256 Mbit, Q-Flash, Q-Flash Plus
    Operating systemsWindows 11 / Windows 10 64-bit
    ConditionUsed, lab-tested
    Review
    Warranty3 months
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberB650M GAMING X AX
    ModelB650M GAMING X AX
    ConditionUsed
    ManufacturerGigabyte
    Audio
    1. Realtek®&Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

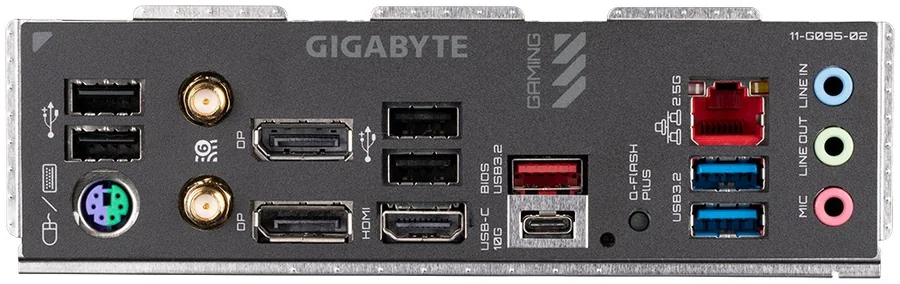

    Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x PS/2 keyboard/mouse port
    3. 2 x SMA antenna connectors (2T2R)
    4. 2 x DisplayPorts
    5. 1 x HDMI port
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 1 x USB Type-C®&port, with USB 3.2 Gen 2 support
    8. 1 x Q-Flash Plus button
    9. 1 x RJ-45 port
    10. 2 x USB 3.2 Gen 1 ports
    11. 3 x audio jacks
    ChipsetB650
    Compatibility for computer assemblyAMD Motherboards
    ConfigurationMicro ATX
    importerofficial
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB Type-C®&header, with USB 3.2 Gen 2 support
    12. 1 x USB 3.2 Gen 1 header
    13. 2 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x serial port header
    16. 1 x reset button
    17. 1 x reset jumper
    18. 1 x Clear CMOS jumper
    Memory
    1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    Memory TypeDDR5
    Memory Volume128GB
    SocketAM5
    Storage

    CPU:

    1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

    Chipset:

    1. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

    Wired Communication1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless network

    AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Intel®&Wi-Fi 6E AX210 (For PCB rev. 1.1)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    (Actual data rate may vary depending on environment and equipment.)

    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte B650M GAMING X AX DDR5 AM5 Condition:Used
    Matching SKUsID:~77461~, Used, OC: 43449, MPN: B650M GAMING X AX
