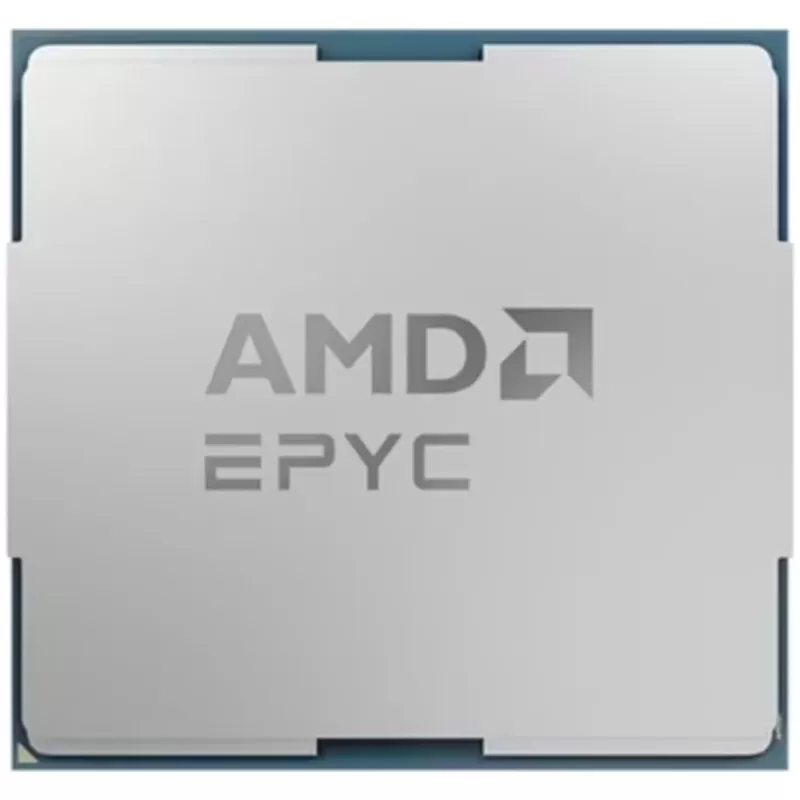

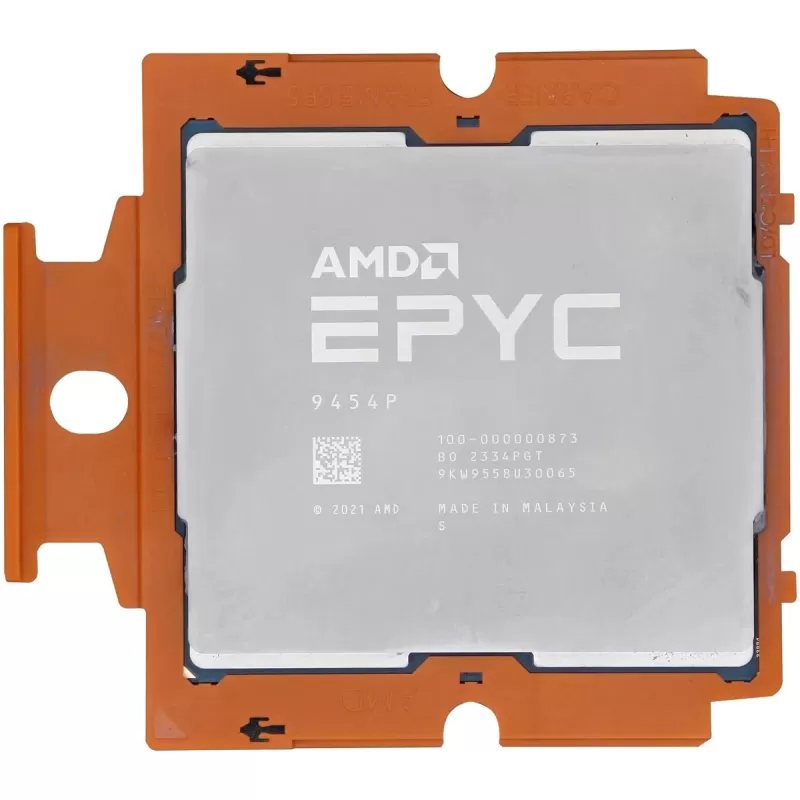

Processor AMD EPYC 9454P SP5

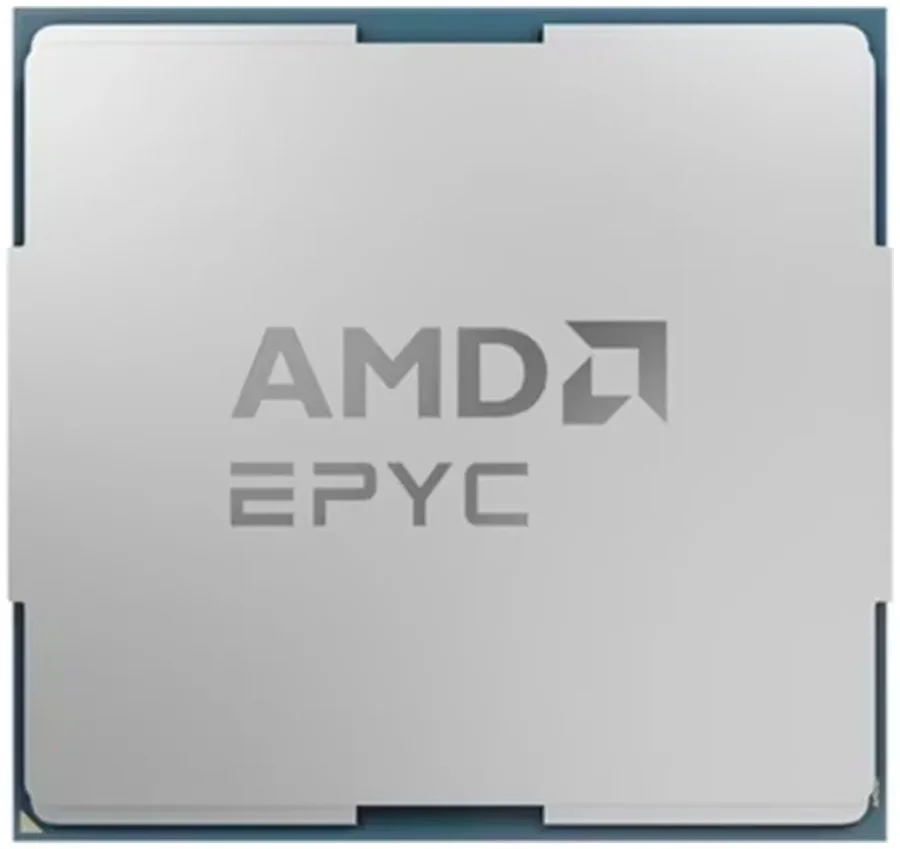

AMD EPYC 9454P Processor

The AMD EPYC 9454P is an AMD EPYC 9004 Series server processor built on the Zen 4 architecture for the SP5 socket and designed for single-socket (1P) servers. It has 48 cores and 96 threads, a 2.75GHz base clock, up to 3.8GHz boost, a 3.65GHz all-core boost and 256MB of L3 cache.

It supports twelve-channel DDR5 memory at up to 4800 MT/s with 460.8 GB/s of bandwidth and 128 PCIe 5.0 lanes. Default TDP is 290W with a configurable 240-300W range. It suits dense virtualization, databases, development and testing, and engineering compute on a single-socket server. This is the tray version: the processor only, without a retail box or cooler.

Key features

• 48 Zen 4 cores - 48 cores and 96 threads, 2.75GHz base, up to 3.8GHz boost and 3.65GHz on all cores.
• 256MB cache - 256MB of L3 cache for data-heavy workloads and many virtual machines.
• 12 DDR5 channels - Twelve-channel DDR5 at up to 4800 MT/s and 460.8 GB/s of bandwidth per processor.
• 128 PCIe 5.0 lanes - PCIe 5.0 x128 for NVMe drives, fast network cards and accelerators.
• Built for single-socket servers - The P model targets 1P configurations, with all cores and lanes in a single-processor server.
• AMD Infinity Guard - AMD Infinity Guard security features and the AMD Infinity Architecture.

Specifications
