Processor Intel Core i7 7740X LGA2066 BOX, without fan

Intel Core i7 7740X Processor

The Intel Core i7-7740X is an Intel Core X-series desktop processor (code name Kaby Lake) for the LGA2066 socket and the X299 platform, made in a 14nm process. It has 4 cores and 8 threads, a high 4.3GHz base clock and up to 4.5GHz turbo, with 8MB of cache.

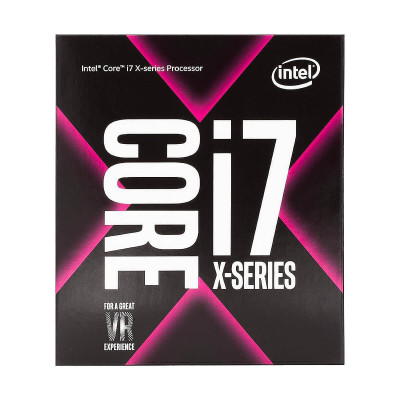

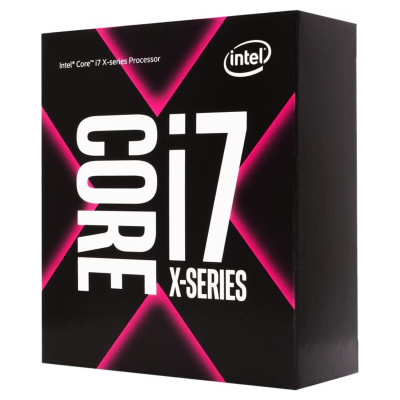

The processor is unlocked and supports dual-channel DDR4-2666 memory up to 64GB and 16 PCIe lanes. It has no integrated graphics, so a discrete graphics card is required, and its TDP is 112W. Part number BX80677I77740X is the boxed version, which ships in a retail box without a cooler.

Key features

• High clocks - 4 cores and 8 threads with a 4.3GHz base clock and up to 4.5GHz turbo, for applications that benefit from high per-core speed.
• X299 platform - Fits motherboards with an LGA2066 socket and the Intel X299 chipset.
• DDR4 memory - Dual-channel DDR4-2666, up to 64GB and 42GB/s of bandwidth.
• 16 PCIe lanes - 1x16, 2x8 or 1x8+2x4 configurations for a graphics card and expansion cards.
• Unlocked - An unlocked multiplier for overclocking, together with Intel Turbo Boost 2.0 and Hyper-Threading.
• No graphics, no cooler - The processor has no integrated graphics and ships without a cooler, so a discrete graphics card and a cooler rated for 112W are required.
