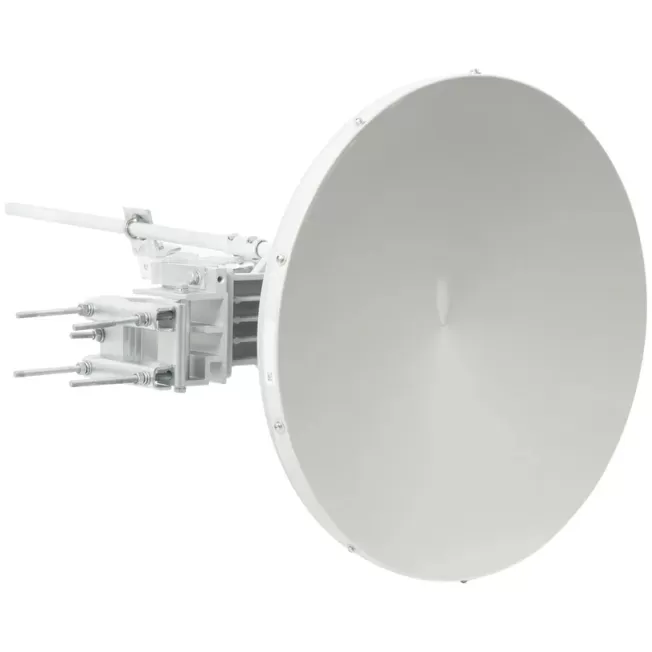

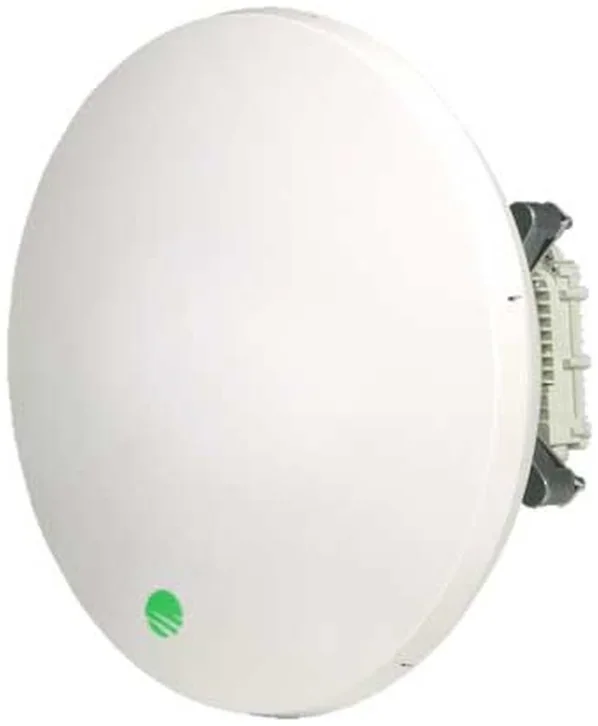

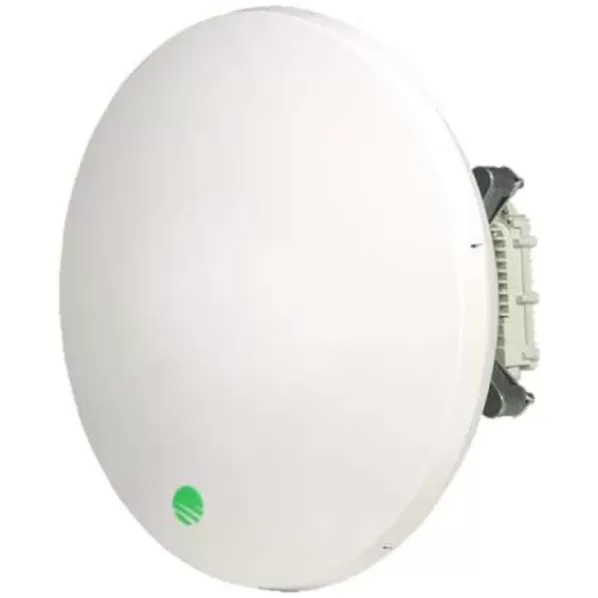

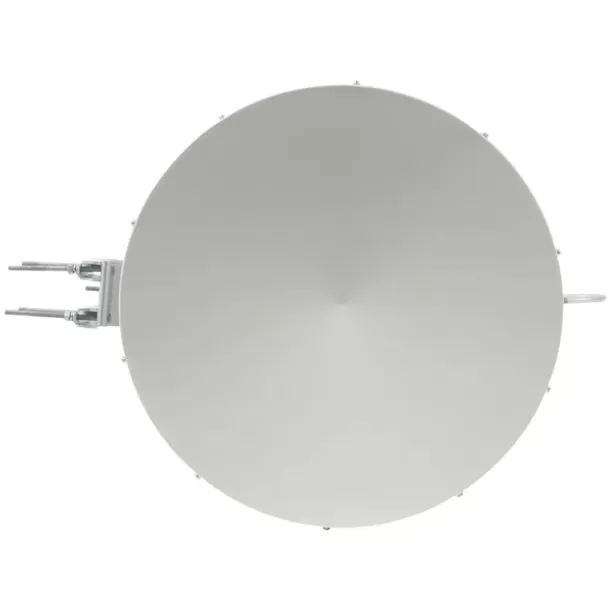

| Revew | Siklu E-band 2ft AntennaThe EH-ANT-2ft-G is a Siklu 2ft (approx. 67 cm) external dish antenna for the 71-86GHz E-band, the version of the EH-ANT-2ft-B supplied with mounting kit and X adaptor. Its 50dBi gain is the highest in the Siklu E-band antenna range, designed for the longest links. The antenna fits EtherHaul radios with an external antenna port: EH-700TX/710T/710TX (via the X adaptor), EH-1200, EH-2200, EH-2500, EH-5500FD and EH-8010FX. The mounting kit is built into the antenna and allows ±15° elevation adjustment.
Key features- 50dBi gain - A 2ft dish with 50dBi ±2dB gain for long-distance E-band links, such as building-to-building or backhaul links.
- Narrow 0.5° beam - A very narrow beam reduces interference and allows frequency reuse even with several links at the same site.
- Wide EtherHaul compatibility - Fits any EtherHaul radio with an external antenna port. The X adaptor also allows connecting EH-7xx series radios.

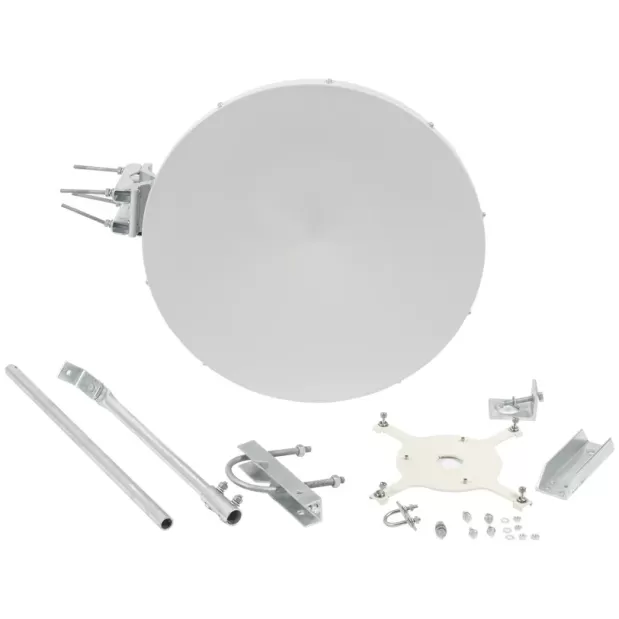

- Built-in mounting kit - A pole bracket with ±15° elevation adjustment is built into the antenna, so no separate mounting kit is needed.
- Built for outdoors - ABS radome, IP67 when mounted on the radio, and wind survival up to 220 km/h.
Specifications| Manufacturer | Siklu | | Part number | EH-ANT-2ft-G (equivalent to EH-ANT-2ft-B) | | Type | External dish antenna | | Diameter | 2ft (Ø672.6 mm) | | Frequency range | 71-86GHz (E-band) | | Gain | 50dBi ±2dB | | 3dB beamwidth | 0.5° | | Polarization | Linear vertical or horizontal | | Max. input power | 10W | | Interface | Circular waveguide E-band | | Regulatory | ETSI EN 302 217-4-2 Class 3, FCC 47CFR101 | | Compatibility | EtherHaul EH-700TX/710T/710TX (with X adaptor), EH-1200T/TX/F/FX, EH-2200F/FX, EH-2500F/FX, EH-5500FD, EH-8010FX | | Mounting | Built-in mounting kit and X adaptor, ±15° elevation | | Radome | ABS | | Weight | 10.8 kg | | Depth with mount | 391.8 mm | | Wind load at survival (220 km/h) | Axial 1,055N, side 679N | | Environmental | IP67 when correctly mounted on the radio, wind survival 220 km/h, operational 160 km/h, ice up to 25 mm radial |
|
