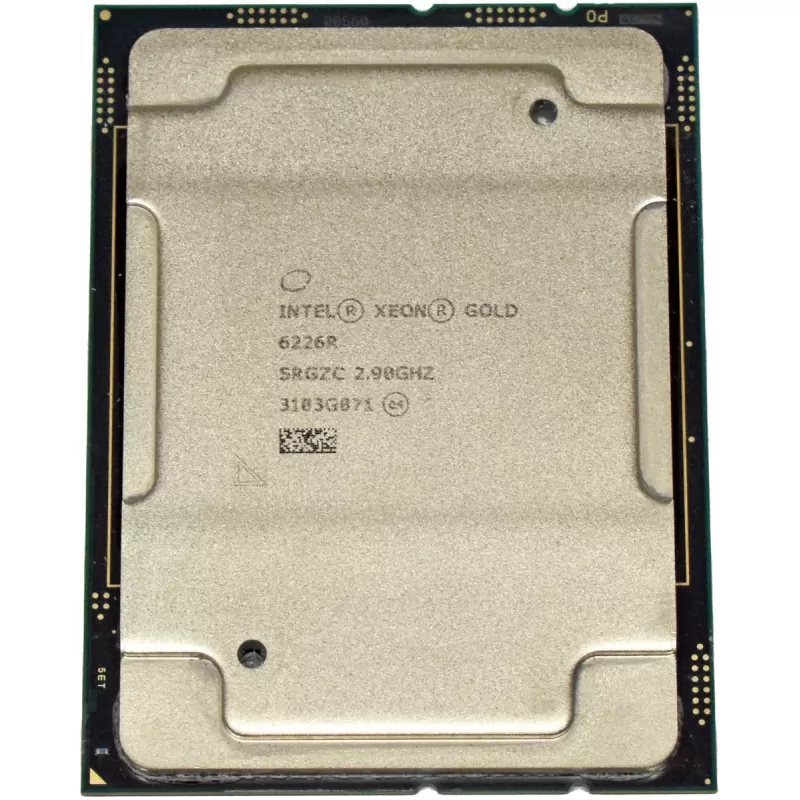

Processor Intel Xeon Gold 6226R LGA3647

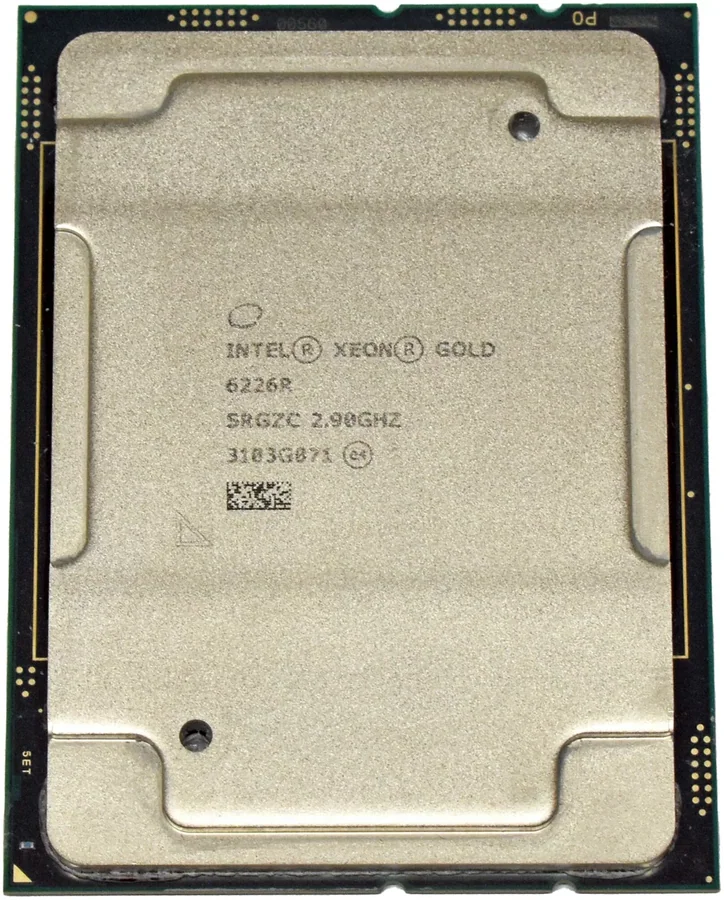

Intel Xeon Gold 6226R Processor

The Intel Xeon Gold 6226R is a 2nd Gen Intel Xeon Scalable server processor (former codename Cascade Lake) made on a 14nm process for the FCLGA3647 socket. It has 16 cores and 32 threads, a 2.90GHz base clock, up to 3.90GHz Turbo, 22MB of cache and a 150W TDP.

It supports six-channel DDR4-2933 ECC memory up to 1TB, Intel Optane Persistent Memory and 48 PCIe 3.0 lanes, and fits single and dual-socket servers for virtualization, databases and business workloads. This is the tray version: the processor only, without a retail box or cooler.

Key features

• 16 high-clocked cores - 16 cores and 32 threads with Hyper-Threading, 2.90GHz base and up to 3.90GHz with Turbo Boost 2.0.
• Six-channel memory - DDR4-2933 ECC in six channels, up to 1TB, plus Intel Optane Persistent Memory support.
• Dual-socket servers - 2S scalability with two UPI links between processors and 48 PCIe 3.0 lanes per processor.
• AI acceleration and AVX-512 - Intel Deep Learning Boost and two AVX-512 FMA units for faster compute and inference.
• Virtualization and security - Intel VT-x, VT-d with EPT, Intel TXT, AES-NI and Intel Run Sure for server reliability.

Specifications
