Switch ALTA LABS S24-POE

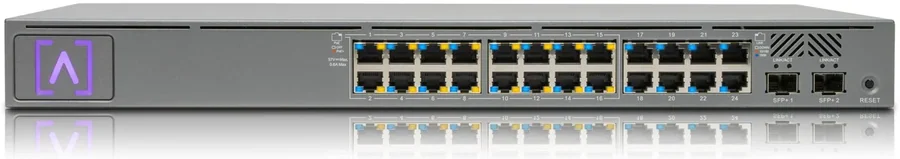

Alta Labs S24-POE 24-Port Managed Gigabit PoE+ Switch

The Alta Labs S24-POE is a rackmount managed Gigabit switch with 24 10/100/1000Mbps ports. Sixteen of them deliver 802.3at PoE+, up to 30W per port with a total budget of 240W, to power access points, cameras and phones. Two SFP+ ports provide fiber or copper uplinks at up to 10Gbps.

Setup is done over Bluetooth with the Alta Labs mobile app, and the switch is managed in the cloud from a browser or phone. It supports VLAN stacking (Q-in-Q), ingress and egress rate limiting, IGMP snooping, 802.1X authentication and loop detection. Rack ears and the Rackstud DUO toolless mounting system are included.

Key features

• 16 PoE+ ports - Ports 1-16 support 802.3at PoE+ with up to 30W per port, backward compatible with 802.3af, with a total budget of 240W.
• 10Gbps uplinks - Two SFP+ ports for fiber or copper at 1 and 10Gbps, plus 2.5 and 5Gbps with NBASE-T transceivers.
• Cloud setup and management - Initial setup over Bluetooth from the app and remote management of multiple sites from a cloud interface in a browser or on a phone, with a customizable dashboard.
• Advanced features - VLAN stacking (Q-in-Q), egress and ingress rate limiting, IGMP snooping for IPTV and multicast, 802.1X authentication and network loop detection.
• Performance - 88Gbps switching capacity, 44Gbps non-blocking throughput, a 12Mbit packet buffer and a 16K MAC table.
• Flexible mounting - Rack ears and Rackstud DUO for toolless rack installation, or wall mounting with the same ears.

Specifications

In the box

• Alta Labs S24-POE switch
• 2 rack ears with 8 screws

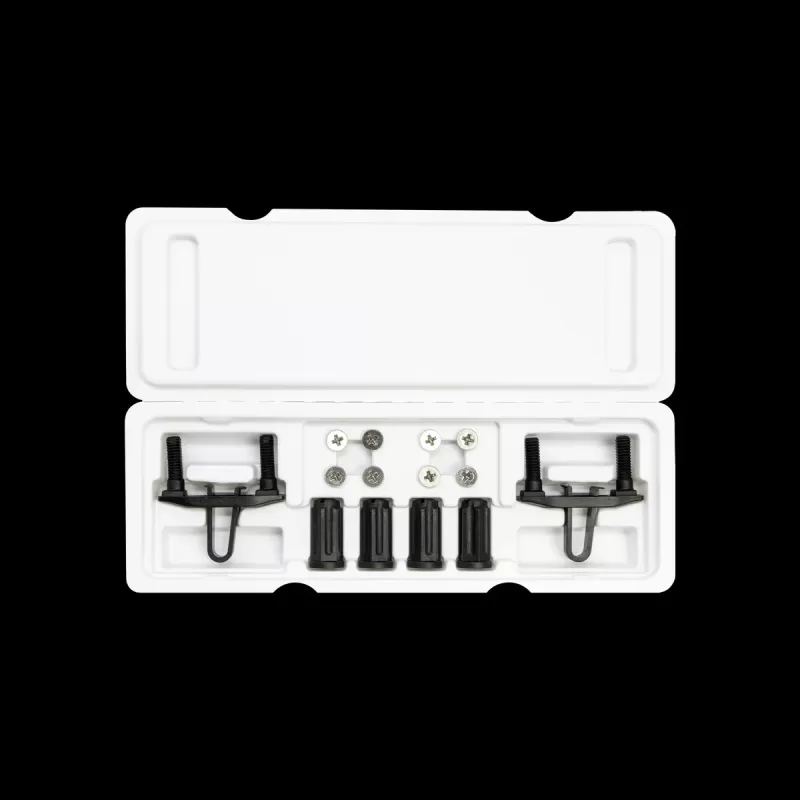

• Rackstud DUO rack mounting kit
