Desktop Memory DRAM Kingston KVR800D2N6/1G 1GB DDR2 800MHz Condition:Used

Desktop Memory DRAM Kingston KVR800D2N6/1G

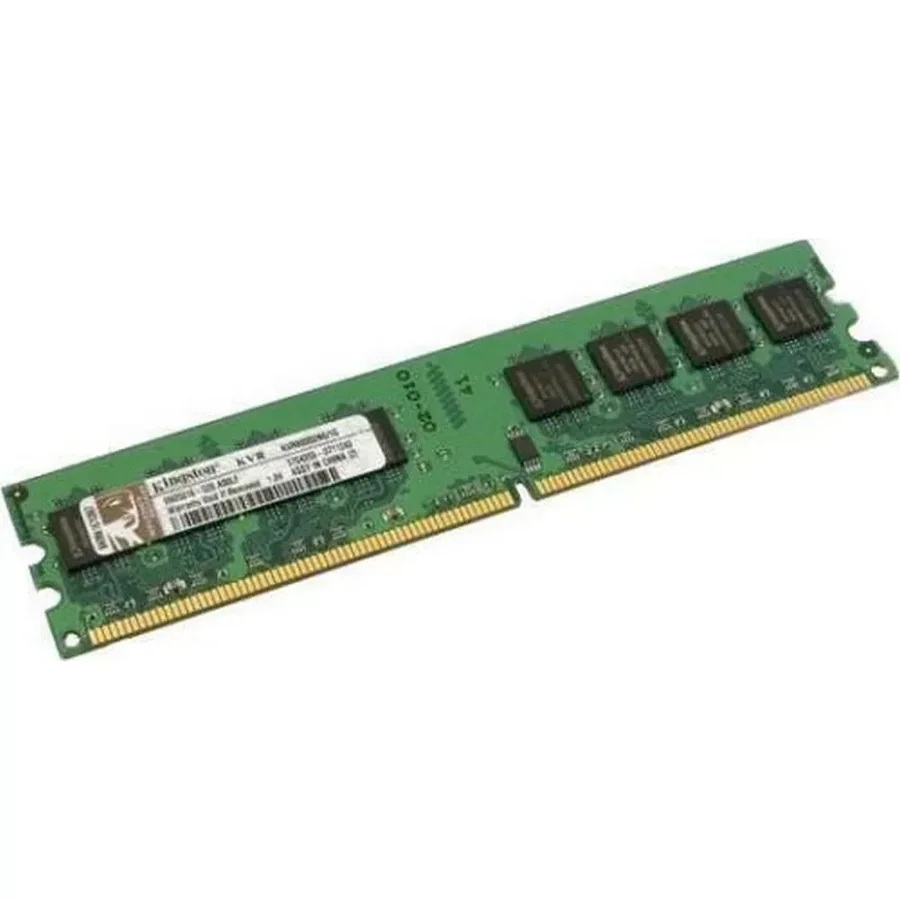

The Kingston KVR800D2N6/1G is a 1GB (128M x 64-bit) ValueRAM DDR2-800 CL6 memory module in a 240-pin DIMM form factor for desktop computers. It is used and has been tested in our lab.

It suits repairing and upgrading older computers with a DDR2 board: adding memory to an office PC, replacing a failed module or completing a pair for dual-channel operation.

The module carries eight 128M x 8-bit DDR2-800 SDRAM chips in FBGA packages and gold contact fingers, and runs at only 1.8V with about 1.355W in operation.

Key features

• DDR2-800 at CL6 - DDR2-800 speed and a 2.5ns clock cycle time at CL6 for stable performance in DDR2 systems.
• 1GB in one module - 1GB (128M x 64-bit) on eight 128M x 8-bit chips in FBGA packages.
• Low voltage and power - A single 1.8V supply (plus/minus 0.1V) and 1.355W in operation.
• Gold contact fingers - A 240-pin DIMM with gold contacts for a reliable fit in the memory slot.
